James Gasket Kits for Engines: Evolution Big Twin



James Gasket Kits for Engines: Evolution Big Twin

Item №

58-263

Price incl. VAT

198.97 €

Available

14



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 31.77 € German VAT.

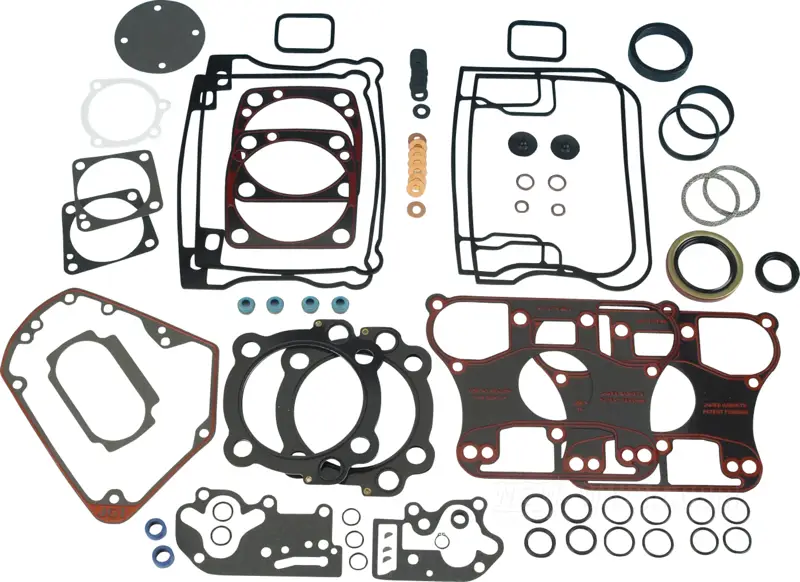

Each complete kit contains all necessary gaskets for the complete overhaul of one engine.

Gasket kit »MLS« by James Gaskets
for Engine
fits Evo Big Twin 1992-1999
rubber / steel / silicone
replaces Harley-Davidson part number HD 17041-92
USA
gross weight: 380 g

James MLS Gaskets

Head gasket with Multi-Layer-Steel technology, i.e. 2 thin FKM-coated spring steel layers enclose an inner steel layer.

Spare parts:

56-120

Gasket; for interconnect tube; fits Sportster 1982-2003, FXR 1982-1994, Softail 1990-2007; stainless steel; replaces OEM HD 65781-82; gross weight: 5 g

56-119

Gasket by James Gaskets; for Header pipe / Cylinder head; fits Evolution, Twin Cam and Milwaukee Eight Big Twins 1985→, Evolution Sportster 1986-2020; steel, conical; ID x OD: 41.5 x 48 mm; replaces OEM HD 65324-83A; gross weight: 4 g

57-785

Gasket by James Gaskets; for Air cleaner / Butterfly carburetor / Induction body; fits Big Twin US models 1990-1998 (Softail →1999), Big Twin HDI models 1990-1994, Sportster US models 1988-2003, Sportster Swiss models 1995-1996, Buell 1996-2002; rubberized steel; replaces OEM HD 29059-88; gross weight: 10 g

57-494

Gasket by James Gaskets; for Gear cover; fits Evolution Big Twin 1993-1999; steel / silicone; replaces OEM HD 25225-93; gross weight: 20 g

58-266

Gasket kit by James Gaskets; for Cylinder head / Cylinder base; fits Sportster 1200 cc 1986-2008 (exc. XL 1200 N 2007-2008). Big Twin 1984-1998, Softail 1999; paper / rubber / steel; replaces OEM HD 16770-84, and 16774-86; gross weight: 150 g

56-121

Gasket by James Gaskets; for interconnect tube; fits Dyna 1991-2002, Softail Deuce and Fatboy 2000-2002; stainless steel; replaces OEM HD 65826-90; gross weight: 10 g

56-910

O-Ring; for End cap / Oil pump cover; fits Big Twin 1991-1998 (Softail →1999); rubber; ID x OD: 12.2 x 16 mm, 1.9 mm thick ; replaces OEM HD 11241; gross weight: 1 g

56-914

O-Ring by James Gaskets; for Float bowl; fits Big Twin 1992-2006 (Dyna only →2005), Sportster 1992-2006; rubber; replaces OEM HD 27577-92; gross weight: 1 g

56-923

Gasket by James Gaskets; for oil filter feed line; fits Dyna and Touring 1992-1998, Softail 1992-1999; rubber; replaces OEM HD 63525-92; gross weight: 10 g

56-924

Gasket by James Gaskets; for Union screw / Oil line; for oil filter mount; fits Dyna and Touring 1992-1998, Softail 1992-1999; rubber / spring steel; replaces OEM HD 63528-92; gross weight: 2 g

57-005

O-Ring by James Gaskets; for Oil filter wing nut BT 1966-1982, XL 1966-1978, Tappet Screen Plug BT late 1970-1984, Check Valve Plug BT late 1978-1998(9), Drain Plugs Dyna 1992→ and Touring 1993→, Drain Plug Transmission and oil tank Softail 2000→, Drain Plug primary housing Dyna 2006→, Softail and Touring 2007→, Drain Plug primary housing and transmission Sportster/Buell 1977→, under fork damper: XL and FX 1971-1972; rubber; ID x OD: 10.8 x 14.4 mm, 1.8 mm thick; replaces OEM HD 11105; gross weight: 1 g

57-032

O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-045

O-Ring; for Pushrod covers; fits Big Twin 1984→, Sportster 1986-1990; rubber; position: bottom; ID x OD: 21.5 x 26.8 mm, 2.6 mm thick; replaces OEM HD 11145; gross weight: 1 g

57-057

O-Ring by James Gaskets; for Pushrod cover top position Big Twin 1984-1998 (Softail →1999), Sportster 1984-1990, oil pump Twin Cam 88; rubber; ID x OD: 18 x 24 mm, 3.5 mm thick; replaces OEM HD 11157; gross weight: 10 g

57-072

O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 14.5 x 17.5 mm, 1.5 mm thick; replaces OEM HD 26432-76; gross weight: 2 g

57-098

Gasket by James Gaskets; for Manifold / Constant velocity carburetor; fits Big Twin 1990-2006, Sportster 1988-2006; rubber; replaces OEM HD 27002-89; gross weight: 10 g

57-126

Oil seal by James Gaskets; for Sprocket shaft / Crankcases; fits Big Twin 1970-1998 (Softail →1999); fits also S&S 1936-1999 Big Twin cases; steel / rubber; replaces OEM HD 12026B; gross weight: 20 g

57-163

Oil seal; for Oil pump drive shaft / Oil pump body; fits Big Twin 1968-1998 (Softail →1999), Sportster 1958-1976; steel / rubber; replaces OEM HD 26227-58; gross weight: 10 g

57-186

Oil seal by James Gaskets; for Cam shaft / Gear cover; fits Big Twin 1970-1998 (Softail →1999); steel / rubber; replaces OEM HD 83162-51; gross weight: 10 g

57-343

Gasket by James Gaskets; for Rocker cover; fits Big Twin 1992-1998 (Softail →1999); rubber; position: outer / bottom; replaces OEM HD 17355-92; gross weight: 10 g

57-344

Gasket by James Gaskets; for Rocker cover; fits Big Twin 1992-1998 (Softail →1999); rubber; position: top / outer; replaces OEM HD 17356-92; gross weight: 10 g

57-422

Gasket »large outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; paper; replaces OEM HD 16774-86, and 16777-83; gross weight: 2 g

57-492

Gasket by James Gaskets; for Gear cover; fits Evolution Big Twin 1993-1999; paper / silicone; replaces OEM HD 25225-93; gross weight: 3 g

57-530

Seal ring; for Manifold flange / Cylinder head; fits Big Twin 1990-2016 (Softail →2017), Sportster 1986-2020; rubber; inner Ø: 45.50 mm; replaces OEM HD 26995-86B, and 26995-86C; gross weight: 10 g

57-561

Gasket by James Gaskets; for Air cleaner / Butterfly carburetor / Induction body; fits Big Twin US models 1990-1998 (Softail →1999), Big Twin HDI models 1990-1994, Sportster US models 1988-2003, Sportster Swiss models 1995-1996, Buell 1996-2002; paper; replaces OEM HD 29059-88; gross weight: 10 g

57-687

Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; fiber; ID x OD: 6 x 16 mm, 1 mm thick; replaces OEM HD 63858-49; gross weight: 1 g

57-735

Gasket by James Gaskets; for Tappet guide; fits Panhead, Shovelhead, Evolution; front; paper; 0.46 mm thick; replaces OEM HD 18634-48C; gross weight: 2 g

57-737

Gasket by James Gaskets; for Gear cover; fits Evolution Big Twin 1993-1999; paper; replaces OEM HD 25225-93B; gross weight: 10 g

57-739

Gasket by James Gaskets; for Oil pump body; fits Evolution Big Twin 1992-1999; paper; replaces OEM HD 26273-92; gross weight: 2 g

57-740

Gasket by James Gaskets; for Oil pump cover; fits Evolution Big Twin 1992-1999; paper; replaces OEM HD 26276-92; gross weight: 2 g

57-781

Gasket by James Gaskets; for Tappet guide; fits Panhead, Shovelhead, Evolution; rear; paper; 0.46 mm thick; replaces OEM HD 18633-48D; gross weight: 2 g

Accessories:

56-205

Gasket by Kibblewhite Precision Machining; for valve stem; fits Big Twin 1984-2004, Evo Sportster 1986-2004; steel / rubber; replaces OEM HD 18001-83B; USA; gross weight: 3 g
