From Shelf to Frame in 74 Steps

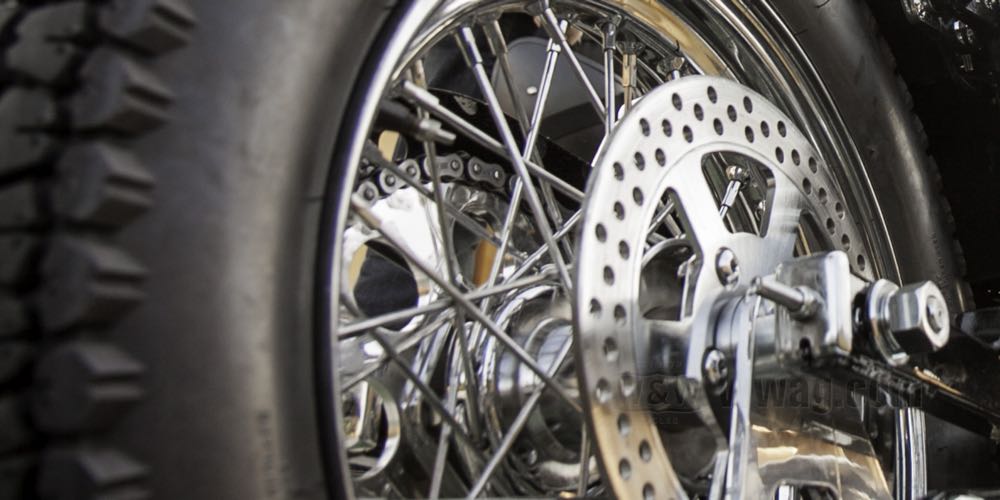

Laced wheel; fits FL/FLH 1973–1981, FX, FXE, FXEF, FXWG 1973-E1982; wide hub steel 1973-99 type (front or rear); hub finish: chrome plated; Ø centering collar: 50 mm; dual flange 3/8” and 7/16" holes; profile: drop-center; rim finish: chrome plated; 3x16 ”; spokes: steel chrome plated; matching axle Ø: 3/4 ”; 18 mm Ø valve hole; replaces OEM HD 43664-80B; gross weight: 9.25 kg

Laced front wheel; fits FX, FXR, Dyna, Sportster 1984-1999 (exc. FX(D)WG, FXST); narrow front hub FX/Sportster 1984-99 type DF; hub finish: chrome plated; Ø centering collar: 50 mm; dual flange 5/16”-18 threads; profile: drop-center; rim finish: chrome plated; 2.5x19 ”; spokes: steel chrome plated; matching axle Ø: 3/4 ”; metal valve in center; replaces OEM HD 43312-84; gross weight: 8.2 kg

Rear axle; fits FL(H) and FX 1973-1985, FXST 1984-1985; models with rear chain; steel, chrome-plated; length: 325 mm; Ø 3/4”; thread: 5/8”-18; replaces OEM HD 41552-73; gross weight: 760 g

Axle nut kit; fits Sportster 1979-1988, Big Twin 1973-1988; steel, chrome-plated; thread: 5/8”-18; position: rear; replaces OEM HD 7986; gross weight: 100 g

Spacer; for Wheel axle; fits FL(H) 1982-1984, FXB 1980-1984, FXSB 1980-1985, FXWG 1984-1986; rear; steel, chrome-plated; length: 30.5 mm; ID x OD: 19 x 28.6 mm; position: left; replaces OEM HD 41592-79; gross weight: 80 g

Spacer; for Wheel axle; fits FL(H) 1973-1982, FX 1973-1984, FXST 1984-1985, FXEF 1985; rear; steel, chrome-plated; length: 21.2 mm; ID x OD: 19 x 28.6 mm; position: left; replaces OEM HD 41595-73; gross weight: 60 g

Tire »Safety Mileage Mk II« by Avon Tyres; rubber / steel; position: front or rear; 4.00-19 65H; tube-type; permitted rims min-max: 2.15 - 3.00; ECE R75 approved, DOT approved; gross weight: 6.95 kg

Tire »Safety Mileage Mk II« by Avon Tyres; rubber / steel; position: front or rear; 5.00-16 69S; tube-type; permitted rims min-max: 3.00 - 3.50; ECE R75 approved, DOT approved; gross weight: 7 kg

Inner tube »15F/16F«; 5.00, 5.10, 130/90, 140/80, 140/90, 150/80, 150/90, 160/70, 160/80, MT90, MU85 on 15 or 16” rim; rubber; 18 mm Ø valve hole; gross weight: 1.11 kg

Inner tube; 3.00, 3.60, 90/90, 100/90 on 19 " rim; rubber; metal valve in center; gross weight: 650 g

Chafing strip; for center valve; for valve on side; rubber; width: 30 mm; Ø 16”; gross weight: 40 g

Chafing strip; for center valve; for center valve; rubber; width: 24 mm; Ø 19”; gross weight: 40 g

Valve cap; metal, knurled, with deflating tool; length: 10 mm; with seal; gross weight: 2 g

Valve cap; metal, knurled; length: 9 mm; with seal; gross weight: 2 g

Tapered roller bearing; for Wheel hub; fits models 1973-1999, ; also used: Big Twin swingarms 1958-1986; steel; tolerance class: RBEC 1; ID x OD: 19.1 x 45.3 mm, 16.6 mm thick ; replaces OEM HD 9052; gross weight: 130 g
