Fork Tube Plugs FX and Sportster
Select variant:
fits FX and Sportster 1952-1972; thread: 1-1/16”-24; replaces OEM HD 45756-59
fits FX and Sportster 1973-1985; with 5/16”-24 threaded hole; thread: M26 x 1.0; replaces OEM HD 45993-74
fits FX and Sportster 1973-1985; thread: M26 x 1.0; replaces OEM HD 45993-73
fits FX and Sportster 1986-1987; thread: M26 x 1.5; replaces OEM HD 45993-86
fits FX and Sportster 1988-2020; for 39 mm forks; thread: M34 x 1.5; replaces OEM HD 45996-87
Price and stock:
Item №
18-521
Price incl. VAT
41.34 €
Available
16
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 6.60 € German VAT.

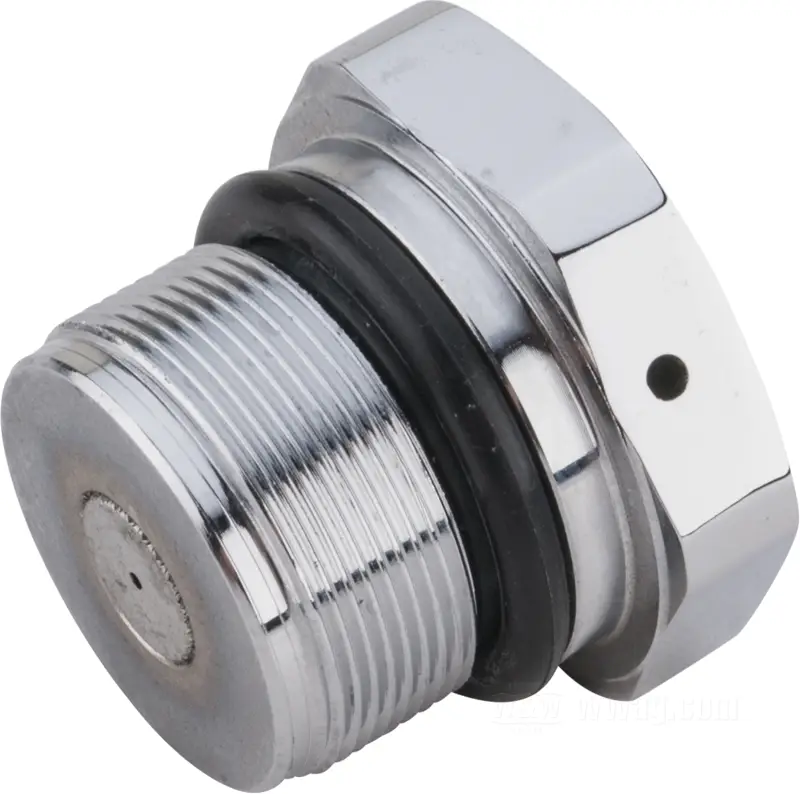

- Plug
- for Fork tubes
- fits FX and Sportster 1952-1972
- steel, chrome-plated
- thread: 1-1/16”-24
- with O-ring
- replaces Harley-Davidson part number HD 45756-59
- gross weight: 156 g
On Harley-Davidson Sportster and FX models with narrow telescopic forks, meaning a tube spacing of 180 mm, there are more variations than on the Big Twins. This is because, over the years since 1952, very different fork tubes have been used.
- The older 33.3 mm fork tubes had inch threads.
- The 35 mm tubes had 26 mm threads with different pitches.
- The 39 mm tubes naturally had larger threads with a diameter of 34 mm.
Tip: measure carefully before selecting the correct part. And of course, if you have any questions, contact the Service Crew @
.
