Fork Tube Plugs for FL(H) and Wide Glide Forks
Select variant:
fits FL(H) 1949-1977; chrome-plated; thread: 1-3/8”-18; replaces OEM HD 45776-49
Item №
18-505
net price
13.39 €
VAT
Germany (19%)
2.54 €
Price incl. VAT
15.93 €
32
ready for immediate delivery from our Würzburg, Germany warehouse
- Plug
- for Fork tubes
- fits FL(H) 1949-1977
- steel, chrome-plated
- thread: 1-3/8”-18
- replaces Harley-Davidson part number HD 45776-49
- gross weight: 180 g

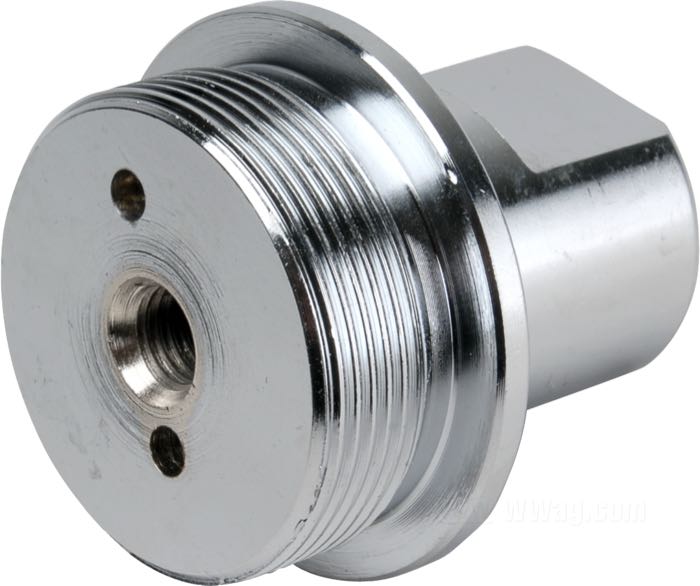

On the wide forks of Harley-Davidson Big Twins (9-7/8” fork tube spacing), the upper fork tube caps also serve to support the tubes against the upper triple tree. For non-air-assisted forks, there are essentially only two common versions of fork caps: with 1-3/8”-18 thread up to 1977, and afterwards with an M35x1.5 thread. Fork tubes after 1977 were and are originally sourced from Japan. The pre-1977 version also features the thread and drillings for the fork vent oil separator. These earlier forks operate without an air chamber.

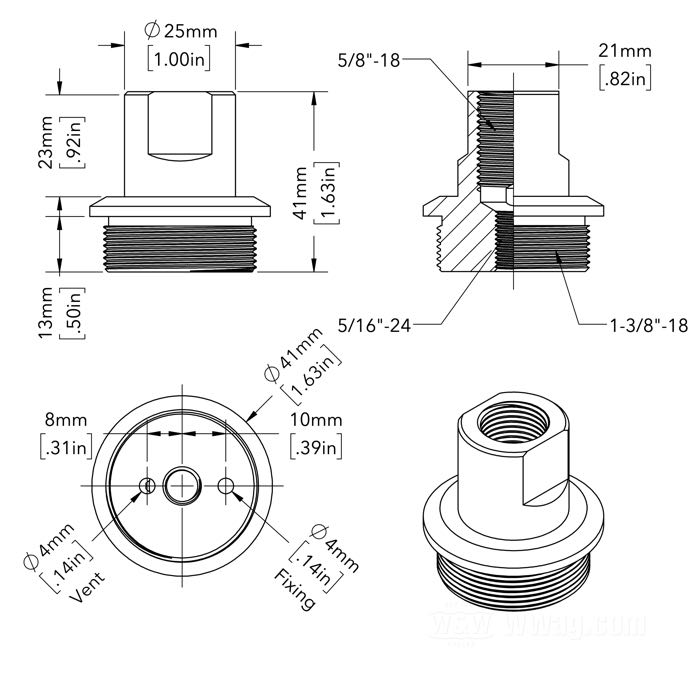

For more measures pls see sketches.
