Electric Wires OEM Color Code
Select subgroup:
30 Meter Rolls
per Meter
Select variant:
red; tracer: yellow
black
black; tracer: red
blue
blue; tracer: black
brown
brown; tracer: black
brown; tracer: white
grey
grey; tracer: green
grey; tracer: white
green; tracer: blue
orange; tracer: black
orange; tracer: white
pink; tracer: white
red
red; tracer: blue
violet
violet; tracer: black
white
white; tracer: black
white; tracer: blue
white; tracer: brown
white; tracer: violet
yellow
yellow; tracer: black
Price and stock:
Item №
14-458
Price incl. VAT
48.08 €
Available
2
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 7.68 € German VAT.

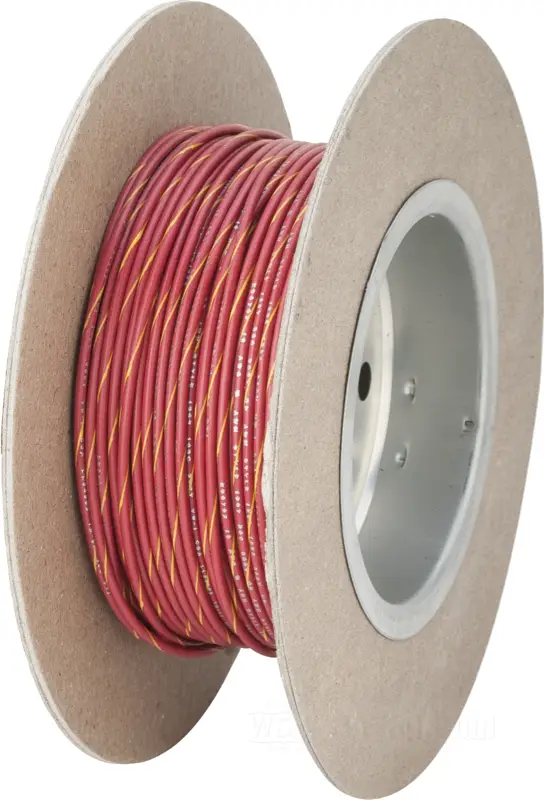

- Electric wire »OEM Color Code«
- copper / PVC, red
- length: 30 m
- tracer: yellow
- 0.82 sq mm
- gross weight: 428 g
These plastic coated AWG 18 (=0.82 mm²) electric wires feature the same colors or color combinations as the factory uses. Perfect for the repair of OEM wiring harnesses or custom fabrication. Available per meter or as 30 meter rolls.
