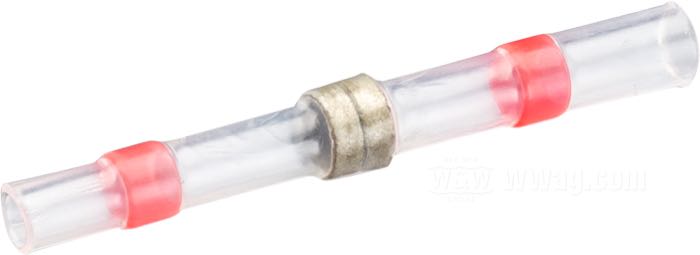

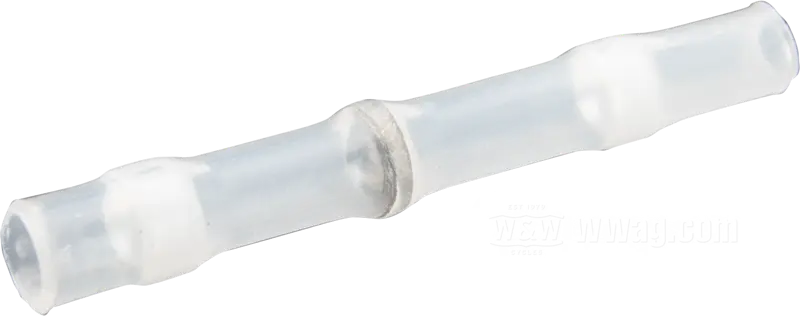

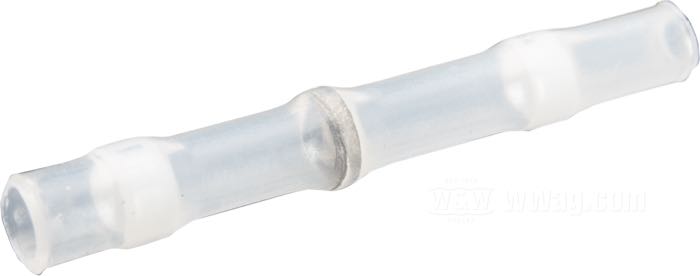

Solder and Shrink Butt Connectors
Select for wires:
Price and stock:
Item №
14-161
Price incl. VAT
2.00 €
Available
100+
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 0.32 € German VAT.
A really smart way to safely join two wires are these dust- and moisture-proof, heat shrinking solder connectors. Just enter and overlap the bare wires ends from both sides, heat everything up with your hot air gun or Zippo lighter until the grommet shrinks and the solder ring melts and you are all set. No more crimping pliers required to create a safe and permanent wire connection. Glue rings at both ends of the connectors further increase safety. Temperature range: -55 °C to +135 °C. Shrinking temperature: +180 °C .
- Butt connector
- plastic / solder, clear
- length: 40 mm
- for wires: ~ 0.1 - 0.5 mm² (AWG 28-20)
- gross weight: 1 g
