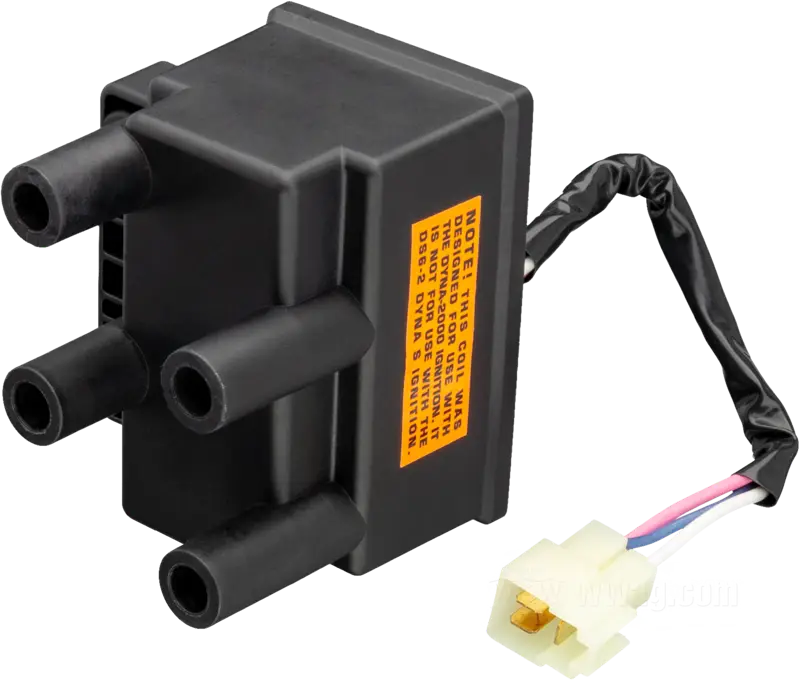

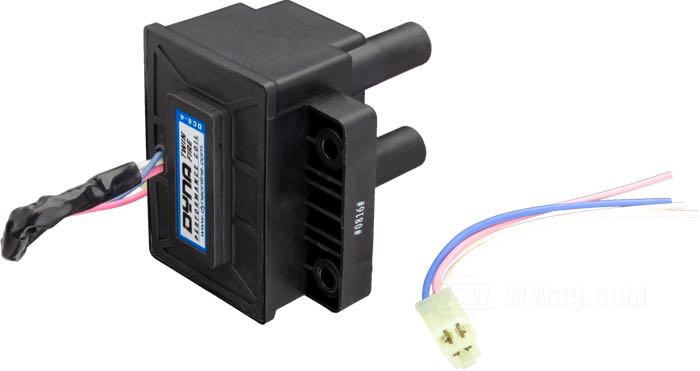

Dynatek 2 in 1 Ignition Coils with 4 Towers
- Ignition coil »2 in 1« by Dynatek
- black
- use with 12 V
- primary resistance: 2 x 3 Ω
- single fire - dual plug
- high tens. tower(s): four
- gross weight: 870 g

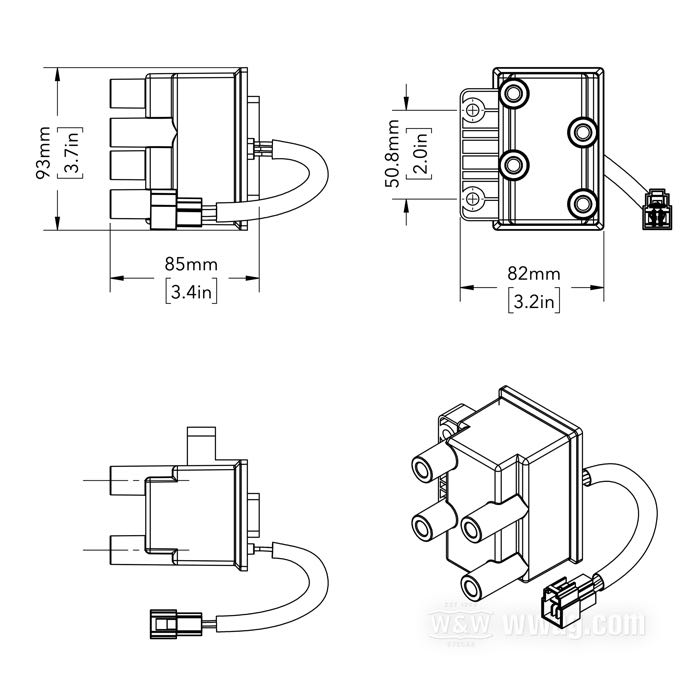

With two spark plugs per cylinder head on the Harley with a two-cylinder engine and a single fire ignition system that assigns the appropriate ignition spark to each cylinder, four ignition cables are required for a total of two ignition coils. Two ignition coils require a lot of space and a new bracket. As an alternative, Dynatek offers a 2-in-1 ignition coil with a total of four ignition cable connections. The mounting points are the same as those of the standard ignition coil on Evo models, whether 1340 or Sportster.
The coil is suitable for electronic ignitions such as Dyna 2000i, but not for contacts or the Dyna S Single Fire ignition.
Dyna S and breaker contact ignitions do not have electronic closing angle control. The assembly of two ignition coils in one housing has the consequence that they influence each other magnetically. In the case of ignitions without closing angle control, this can lead to overheating. Therefore, do not use these coils with Dyna S or breaker contacts.
