Cylinders for Flathead 750cc / 45 cui.
Select variant:

front; replaces OEM HD 16460-40


rear; replaces OEM HD 16461-40
Price and stock:
Item №
64-023
Price incl. VAT
696.61 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 111.22 € German VAT.

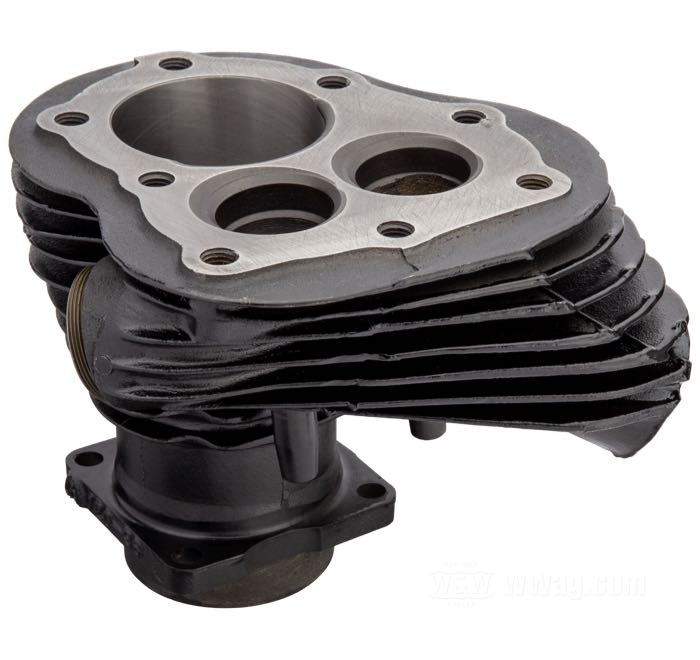

- Cylinder
- fits Flathead 750cc/45 cui.
- front
- cast iron, black
- length: 149 mm
- nominal bore: 2-3/4 ”
- replaces Harley-Davidson part number HD 16460-40
- gross weight: 6.74 kg
Cylinders as used on 750 cc / 45 cui. Flatheads 1940 and up. All that is required for installation is honing for pistons and a valve job. Valve guides and manifold nipples are pre-installed.
Both cylinders require pistons and piston rings of the first oversize (+0.010"). The pressed-in valve guides are honed to 0.10-0.12mm clearance.
Cylinders which are not offered as complete kits, i.e. with pistons and rings, are not finish honed. This job must be performed in a qualified workshop.
Accessories:

60-860
Valve springs by Samwel Supplies; fits 750cc models 1941-1973; spring steel; length: 69 mm; max. travel: 0.500 ”; pressure closed valve: 70 lbs; pressure open valve: 116 lbs; 4 pieces; replaces OEM HD 168-41, and 18201-41; gross weight: 360 g

Gaskets for Cylinder Head: 45 cui/750 cc Sidevalve

Aluminum Cylinder Heads - for 45"/750cc Flathead

Stock Replacement Pistons - for Flatheads 750cc 1929-1973
All OEM and identical aftermarket pistons for 45”/750 cc models 1929→ (except WR) have the same compression height. Different compression ratios are achived solely with different cylinder heads for the respective model group like D, R, W, WL, WLD, WLA etc. These range from 4.3:1 to 6.0:1.

James Gaskets for Cylinder Base: 45cui/750 cc Sidevalve

KPM Black Diamond Valves - for 45” Flathead and Servi-Car
