Cylinders for Evolution Sportster
Select variant:

cast finish


black, wrinkle finish
Price and stock:
Item №
64-039
Price incl. VAT
306.29 €
Available
7
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 48.90 € German VAT.

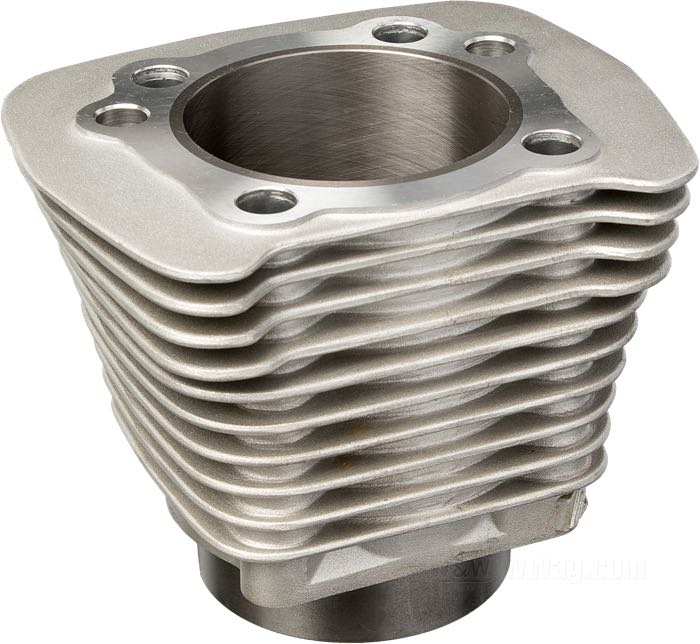

- Cylinder
- fits Evo Sportster 1200cc 1988-2003
- front or rear
- aluminum, cast finish
- nominal bore: 3-1/2 ”
- inner Ø: 88.88 mm
- replaces Harley-Davidson part number HD 16447-88
- gross weight: 3.1 kg
Replacement cylinders for orignal barrels which have reached their wear limit. Design, finish and workmanship exactly correspond to the stock counterparts.
Cylinders which are not offered as complete kits, i.e. with pistons and rings, are not finish honed. This job must be performed in a qualified workshop.
Accessories:

57-424
Gasket »curved outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; rubberized steel with silicone seal; replaces OEM HD 16774-86, and 16777-83; gross weight: 30 g

57-415
Gasket »curved outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; paper; replaces OEM HD 16774-86, and 16777-83; gross weight: 10 g

57-422
Gasket »large outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; paper; replaces OEM HD 16774-86, and 16777-83; gross weight: 2 g

57-423
Gasket »large outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; rubberized steel with silicone seal; replaces OEM HD 16774-86, and 16777-83; gross weight: 30 g
See also:

James Gasket Kits for Top End: Evolution Big Twin
Include all gaskets for top end overhaul.

James Gasket Kits for Top End: Evolution Sportster
Include all gaskets for top end overhaul.

James Gasket Kits for Cylinder Heads and Base: Evolution 3-1/2” Bore
Including 2 MLS headgaskets 0,062" and 2 steel/silicone base gaskets
