Crankcase Main Bearings Left 1912-1916 Twins
Price and stock:
Item №
63-072
net price
$55.96
Available
7
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.

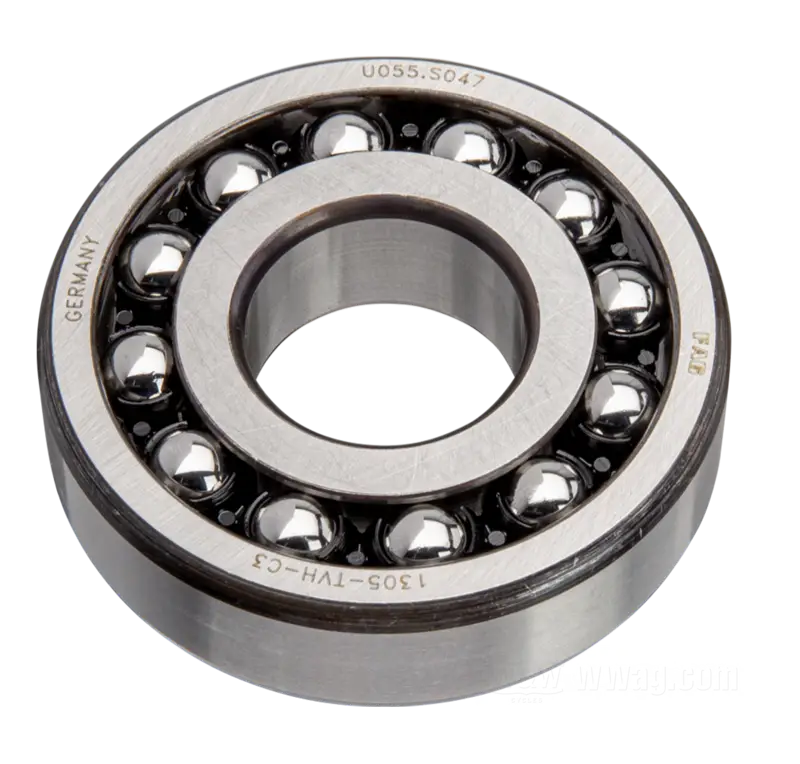

- Self-aligning ball bearing
- for Crankcases / Sprocket shaft
- fits 61 cuin twins 1912-1916, 1917-1919 special motors n° 500-999
- double-row
- steel / glass fiber reinforced polyamide
- ID x OD: 25 x 62 mm, 17 mm thick
- tolerance class: ABEC 1
- replaces Harley-Davidson part number HD AA704
- gross weight: 256 g
For the first years of heavy weight big twins (988 cc/ 60.3 cuin) the factory chose tu use a metric bearing. To compensate for minor production irregularities, they used a so-called double-row self-aligning ball bearing. The dimensions of 25 x 62 x 17 mm seem familiar to someone who feels at home in dealing with inches and feet. But these dimensions are just the tiny bit off of common inch fractures. So, for all ye restorers out there: dont look further, here's the right stuff.
The flywheel spocketshaft is no press fit in the inner race, but a slide fit.
