Clutch Lever Rods and Ends 1929→

Clutch Lever Rods and Ends 1929→

Facts
Description
  • steel

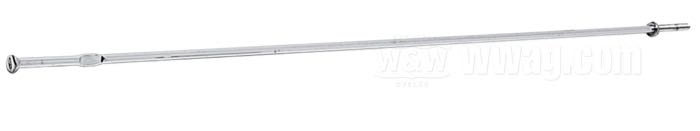

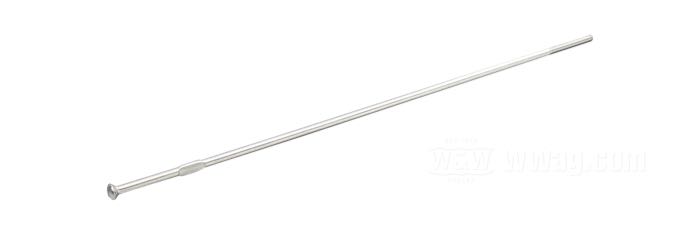

Chrome-plated clutch rods, rod ends and bolts for foot-operated and hand-operated clutches. The Big Twin 1936-1964 rods are available as an early Type 1 and a later Type 2. The early Type 1 has a center reduced design (thicker at the ends and skinny in the middle) and was used until some time nearing or during WWII. After that the factory used the straight diameter rod Type 2.

Item №
Version
Price incl. VAT*
unit
Availability in warehouse Germany
80-916
80-916
Clutch rod; for OEM foot-clutch; fits D, R and W series models 1929-1937; CAD (ZnNi process); length: 14-1/4”; Ø 3/16”; thread: #10-32; replaces OEM HD 2424-29
63.47 €
piece
Go to article
80-926
80-926
Clutch rod »Type 1« by Strange Bird; for OEM foot-clutch; fits Big Twin 1936-1964; CAD (ZnNi process); length: 18-1/2”; Ø 5/32”; thread: #10-32; replaces OEM HD 2425-36, and 36917-36; USA
103.60 €
piece
Go to article
80-740
80-740
Clutch rod »Type 2«; for OEM foot-clutch; fits Big Twin 1936-1964; CAD (ZnNi process); length: 18-1/2”; Ø 3/16”; thread: #10-32; replaces OEM HD 36917-36
54.72 €
piece
Go to article
80-750
80-750
Clutch rod »Type 2«; for OEM foot-clutch; fits Big Twin 1936-1964; chrome-plated; length: 18-1/2”; Ø 3/16”; thread: #10-32; replaces OEM HD 36917-36
15.84 €
piece
Go to article
80-753
80-753
Clutch rod; for OEM foot-clutch; fits Big Twin 1965-1978; chrome-plated; length: 17”; Ø 3/16”; thread: #10-32; replaces OEM HD 36917-65
30.05 €
piece
Go to article
80-743
80-743
Clutch rod; for Mousetrap; fits Big Twin 1952-1967; CAD (ZnNi process); length: 22”; Ø 3/16”; thread: #10-32; replaces OEM HD 36918-52
54.72 €
piece
Go to article
80-754
80-754
Clutch rod; for Mousetrap; fits Big Twin 1952-1967; chrome-plated; length: 22-3/8”; Ø 3/16”; thread: #10-32; replaces OEM HD 36918-52
17.86 €
piece
Go to article
80-758
80-758
Rod end; for Clutch rod / Clutch cable; fits Big Twin 1936-1978, 45”/750 cc 1941-1973; chrome-plated; Ø 7/16”; thread: #10-32; replaces OEM HD 36916-36
18.11 €
piece
Go to article
80-759
80-759
Rod end; for Clutch rod / Clutch cable; fits Big Twin 1936-1978, 45”/750 cc 1941-1973; CAD (ZnNi process), Ø 7/16”; thread: #10-32; replaces OEM HD 36916-36
13.74 €
piece
Go to article
80-917
80-917
Rod end; for Clutch cable; fits 45"/750cc 1947-1973; CAD (ZnNi process); thread: 1/4”-24; replaces OEM HD 36993-47
43.65 €
piece
Go to article
79-416
79-416
Snap ring; for foot clutch rod end; fits Big Twin 1941-1978; bare; replaces OEM HD 11037
1.18 €
piece
Go to article

Related:

45-047
45-047
Bolt; for mousetrap clutch booster; fits Big Twin 1952-1967; steel, chrome-plated; with nut, lockwasher; replaces OEM HD 36921-52; gross weight: 30 g
18.97 €
kit
Go to article
45-048
45-048
Bolt; for mousetrap clutch booster; fits Big Twin 1952-1967; steel, CAD (ZnNi process); with nut, lockwasher; replaces OEM HD 36921-52; gross weight: 30 g
17.27 €
kit
Go to article
