Spring Adjusting Nuts
Select variant:
by Colony; fits 45”/750 cc and Big Twins 1941-1946; with tab washers; replaces OEM HD 7780, and 38110-41; USA
fits 45” 1947-1973, Big Twin 1947-1983; replaces OEM HD 37581-47
Price and stock:
Item №
80-699
Price incl. VAT
21.28 €
Available
4
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 3.40 € German VAT.

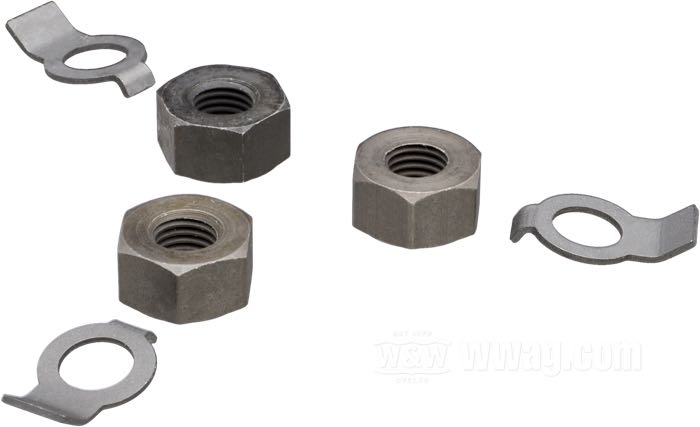

- Adjusting nut by Colony
- for Clutch / Spring seat
- fits 45”/750 cc and Big Twins 1941-1946
- steel, bare
- thread: 5/16”-24
- wrench size: 1/2 ”
- with tab washers
- replaces Harley-Davidson part number HD 7780, and 38110-41
- USA
- gross weight: 38 g
A special feature of the clutches used on Harley-Davidson V-twins with 750 cc or Big Twin engines from 1941 onward were the adjustment nuts. With the slot on one end face, they engage with corresponding lugs on the spring adjustment plate. This serves as a locking mechanism on the one hand, and on the other it makes it much easier to count the individual “clicks” during adjustment than 1/4 or 1/2 turns. The nuts have a 24-thread pitch, meaning that one click corresponds to approximately ±0.5 mm. Give it a try!
