Spoke Sets for Wide Hub and Drop-Center Rims
Select subgroup:
Select variant:
steel, chrome-plated
stainless steel, polished
Price and stock:
Item №
25-240
Price incl. VAT
77.24 €
Available
58
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 12.33 € German VAT.

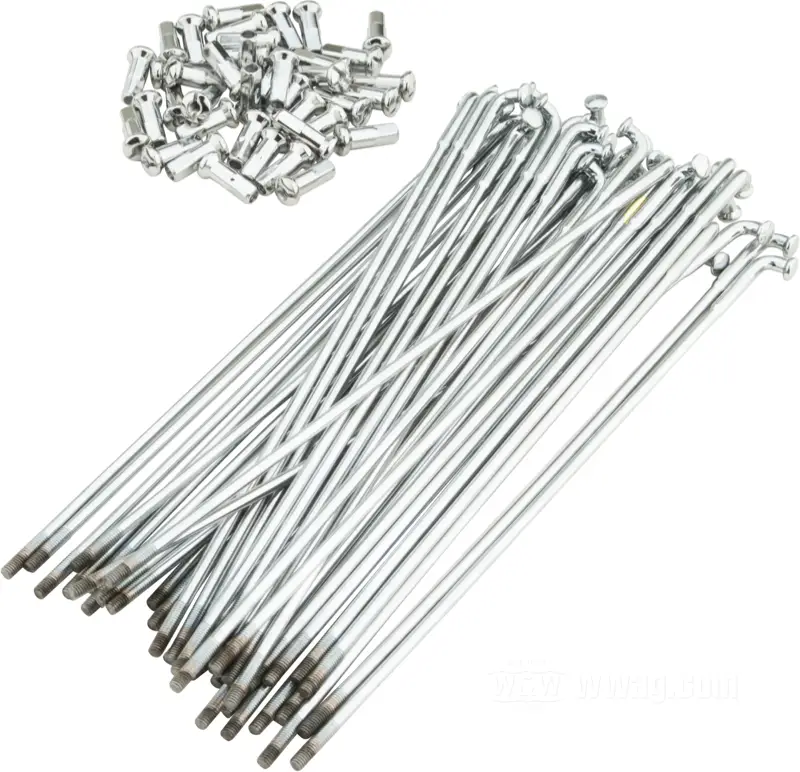

- Spoke set
- steel, chrome-plated
- length L1: 245 mm
- diameter D1: 5 mm
- diameter D2: 4 mm
- head angle α: 95 °
- thread: 8G-32
- for wide wheel hub
- for 21” drop-center and Morad rims
- 80 pieces
- with nipples Ø 7.2 mm
- replaces Harley-Davidson part number HD 43057-80A
- gross weight: 1.3 kg
Spoke kits for all standard Harley-Davidson hubs from 1936 onward, suitable for classic Big Twin hubs including rear hubs of FX, FXD, FXWG, and Sportster models. Not suitable for 45” front hubs, K models, Sportster, FX, FXR, or Dyna front hubs.
The spoke lengths are suitable for symmetrical lacing of deep-dish rims of the listed diameters. Each kit contains 40 spokes of the same length and 40 nipples.
Spoke Heads of Equal Length
The kits contain spokes with heads of equal length. On lacing the wheel, the inner spokes are positioned side by side to the outer ones.
Spare parts:
25-241
Spoke; steel, chrome-plated; length L1: 245; for wide wheel hub; for 21" drop-center rims; with nipple; replaces OEM HD 43057-80A; gross weight: 10 g
Spoke Nipple Sets Standard
Use as replacements for our spokes or OEM spokes. Extra-long spoke nipples can be a solution in custom applications, where the inside diameter of the respective rim is larger than stock.
See also:
Spoke Nipple Wrenches Big Twins and Sportsters
Reproduction of the proven factory tool.
Spoke Nipple Wrenches Pro
For six different nipple sizes. Professional quality.
Star Hubs 1940-1966 with Tapered Roller Bearings
Replacement for Harley-Davidson wheel hubs 1940–1966. Externally, the hubs are styled like the original, but inside they feature tapered roller bearings. Ready-to-install, pre-assembled with oil seals.
