Spoke Sets for Wide Hub and Drop-Center Rims
Select subgroup:
Select variant:
for 18" semi-drop center rims and wide hub and 19" drop-center rims with "1-over-3" spoke pattern; stainless steel, polished; length L1: 207
for 18" semi-drop center rims and wide hub and 19" drop-center rims with "1-over-3" spoke pattern; steel, chrome-plated; length L1: 207
for 19" drop-center rims; steel, chrome-plated; length L1: 211
Price and stock:
Item №
25-262
Price incl. VAT
177.41 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 28.33 € German VAT.

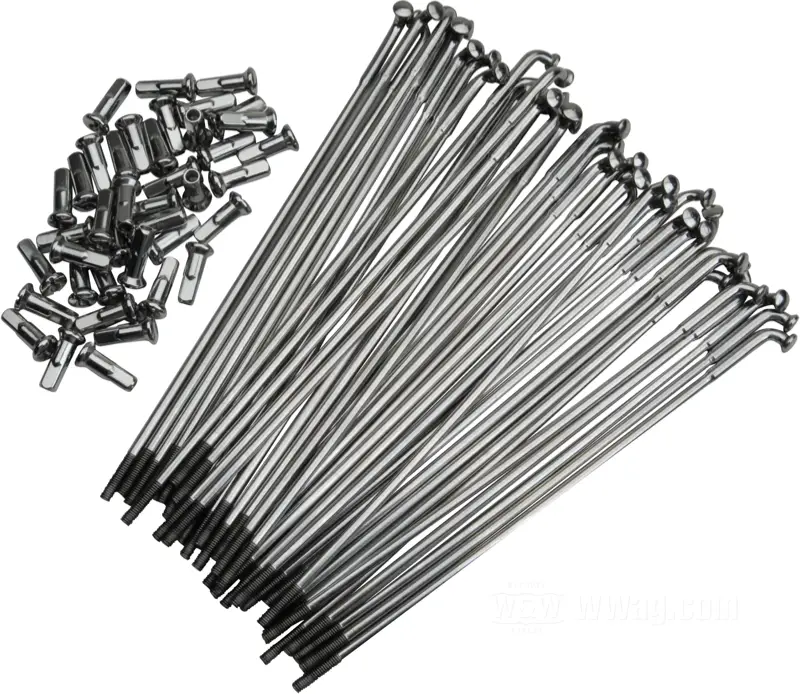

- Spoke set
- for 18" semi-drop center rims and wide hub and 19" drop-center rims with "1-over-3" spoke pattern
- stainless steel, polished
- length L1: 207
- diameter D1: 5 mm
- diameter D2: 4 mm
- head angle α: 104 °
- thread: 8G-32
- for wide wheel hub
- for 18" semi-drop center and 19" drop-center rims
- 80 pieces
- with nipples Ø 7.2 mm
- gross weight: 1.2 kg
Spoke sets for all standard HD 1936→ model hubs incl. FX(D)WG, exc. front hubs on 45”, K-models, Sportster, FX, FXR and Dyna.
Spoke Heads of Equal Length
The kits contain spokes with heads of equal length. On lacing the wheel, the inner spokes are positioned side by side to the outer ones.
Spare parts:
25-263
Spoke; stainless steel, polished; length L1: 207; for wide wheel hub; for 18" semi-drop center and 19" drop-center rims; with nipple; gross weight: 30 g
Spoke Nipple Sets Standard
Use as replacements for our spokes or OEM spokes. Extra-long spoke nipples can be a solution in custom applications, where the inside diameter of the respective rim is larger than stock.
See also:
Spoke Nipple Wrenches Big Twins and Sportsters
Reproduction of the proven factory tool.
Spoke Nipple Wrenches Pro
For six different nipple sizes. Professional quality.
Star Hubs 1940-1966 with Tapered Roller Bearings
This hub is completely re-engineered. It duplicates the original part in outside dimensions and appearance, but has added the reliability of tapered roller bearings. Comes ready-to-install, with conventional grease seals.
