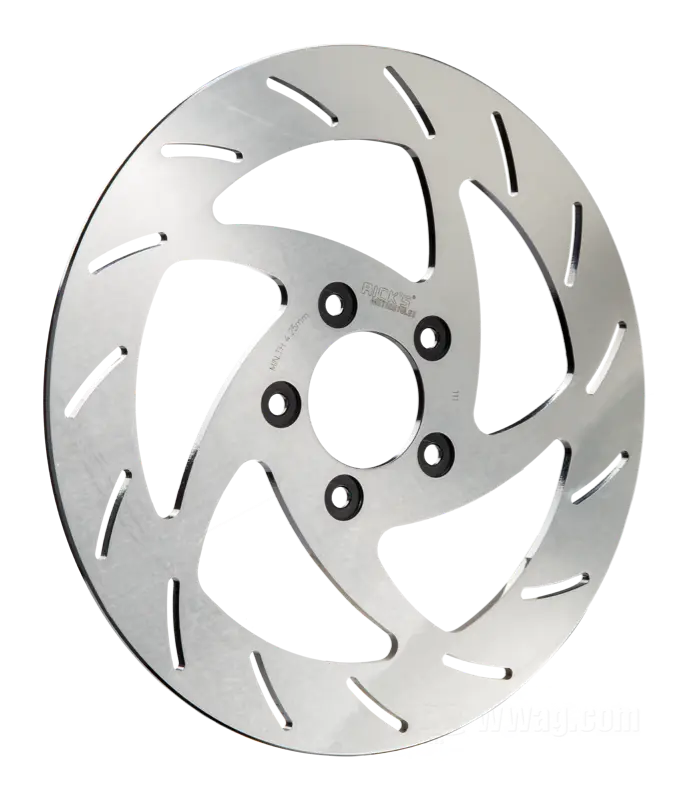

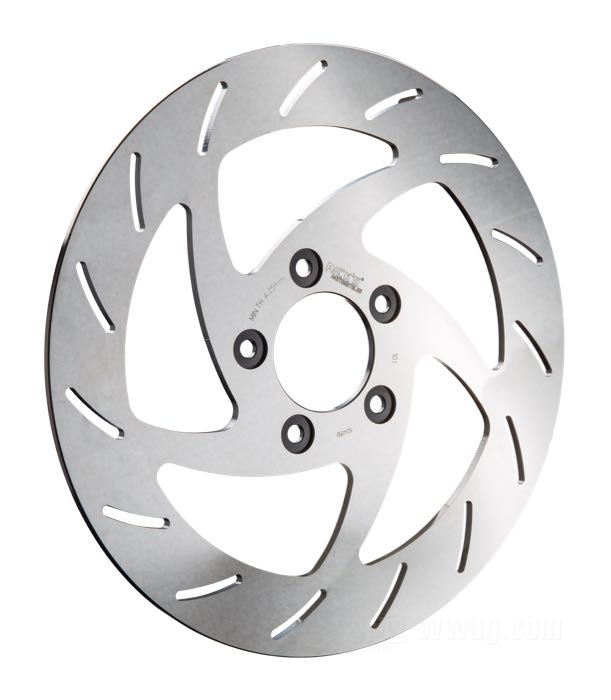

Rick’s Bob Brake Rotors
- Brake rotor »Bob« by Rick’s
- fits wheels 2000→
- left
- stainless steel, polished
- Ø 11.5”
- mounting holes: 5/16” flat counterbore
- Inner Ø: 56 mm
- with parts certificate
- gross weight: 1.7 kg
Top the looks of your new Rick´s wheel with a matching brake disc and belt pulley by Rick´s. The brake rotors are made from stainless steel, precision ground and polished for a perfect surface.
Brake rotor ODs
11.8” discs are OE on the front end of Dyna models 2006→, front and rear of Touring 2008→, all XR1200R models, Sportster 2014→ fronts and some 2011-2013 rears, Softail 2015→ fronts and 2018→ rear ends. All other Dyna, Touring , Sportster, and Softail applications 1984→ had 11.5" discs. XR1200 and Sportster models 2011→ have 10.3” on the rear wheel. 13” discs were never OE.
Rick’s rotors
Rick’s rotors have 56 mm ID. This requires a reducer when installing them on Evo type wheels. These rotors are TUV approved and drilled for 5/16” button head bolts. For rear wheel applications the bolt holes have to be enlarged to 3/8”.
Accessories:
Bates Reducer Bushings for Mounting Holes on Wheel Hub Flanges
Bates Brake Rotor Shims
Hub Centering Collar Adapter Rings for Rick's Brake Rotors
