Oil Line Kits Tight-Fit for Horseshoe Tanks
Select variant:

CAD (ZnNi process)


chrome-plated
Price and stock:
Item №
54-110
Price incl. VAT
127.31 €
Available
18
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 20.33 € German VAT.

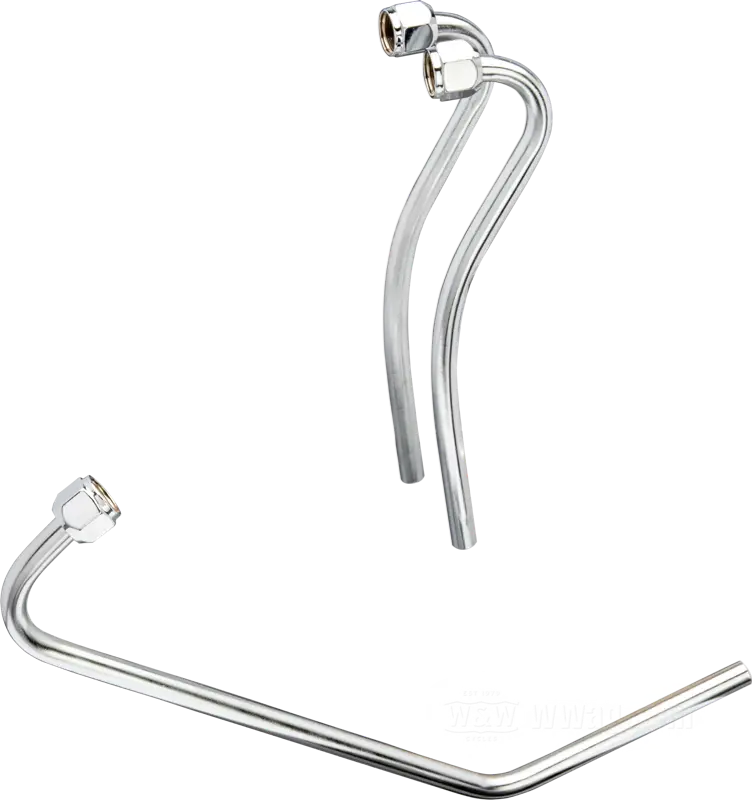

- Oil line kit »Tight-Fit« by Strange Bird
- for Horseshoe oil tank
- steel, CAD (ZnNi process)
- connection thread: 9/16"-24
- USA
- gross weight: 208 g
These tight-fit rigid feed, return and vent lines must be completed with a flexible oil line for connection to the oil pump. The very tight radius at the upper end of the lines creates more space for installation, as there is relatively little space to the heads, especially on Big Twin Flatheads with aluminum heads or Shovelheads in rigid frames. For use in rigid frames and horseshoe oil tanks with 9/16"-24 thread and 30° cone connections.
Accessories:

Oil Line Fittings for Oil Pump and Crankcases

PanAm Oil Line Fittings 9/16”-24 HD-Type
Finally available again! Oil line fittings for classic style oil tanks and pumps thru 1964. They feature the correct 9/16”-24 HD thread and press fittings for 5/16” ID rubber oil hose. Thus you can fabricate custom rubber oil lines in no time. Class A quality.

Oil and Fuel Lines with Fabric Cover
High quality hoses which have a black fabric cover for additional protection and to prevent scratches. Nice nostalgic look and a true alternative to stock hoses.
See also:

PanAm Oil SAE 20W-50
Our traditional multigrade engine lubricant for all year round usage, suitable for heavy loads. This high performance lubricant complies with API SL.

PanAm Oil/Ignition Shut-Off Valves
Pre-TwinCam engines have a spring loaded ball check valve to prevent the engine oil from seeping down to the crankcase. These check valves don’t last forever. If you try to start your engine after a lengthy period of inactivity (e.g. winter), the oil in the crank case gets forcefully ejected via the breather. Creating an ungodly mess on your garage floor....
