Offset Sprocket Kits for 4-Speed Big Twins
Offset Sprocket Kits for 4-Speed Big Twins
Price and stock:
Item №
76-748
Price incl. VAT
49.05 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 7.83 € German VAT.

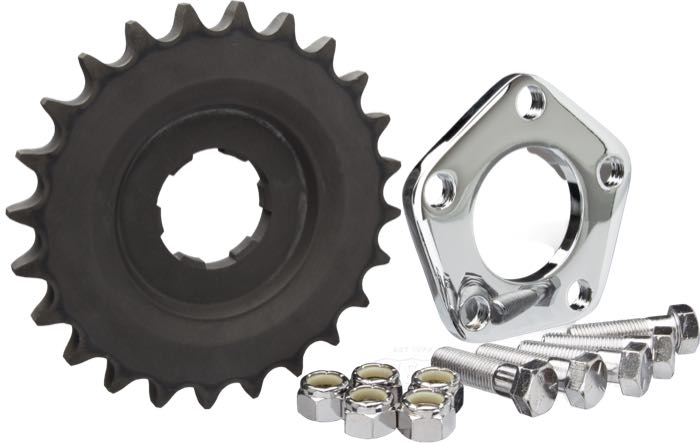

- Offset sprocket kit
- fits 4-speed Big Twin
- steel
- offset: 8 mm (→1979), 7 mm (1980→) ”
- number of teeth: 24
- pitch: 530 (5/8” x 3/8”)
- with offset sprocket, precision machined rear sprocket spacer and hardware
- gross weight: 1.18 kg
Solve installation problems when mounting wide rear tires. No more offset spoking necessary. Installation on stock bikes requires an inner primary housing for secondary belt drive. 1979-85 FX models need to retrofit a Prestolite starter.
Spare parts:
Accessories:

Tsubaki Alpha RQ2 530 Secondary Chain
The Alpha type chain by Tsubaki is smooth running with a minimum of power loss combined with the benefits of X-sealed inside lubrication that provides a longer chain lifespan. A great chain for hi-torque, hi-horsepower performance bikes. Available as Alpha XRS in plain steel and RQ2 with gold coloured outer links. Same chain, same quality.

Tsubaki Sigma 530 Secondary Chain
The Sigma XRS 530 is the highest strength chain available from Tsubaki. While the steel coloured version keeps this name, the version with gold coloured outer plates changed it to RQ1. Quality and strength of course stay identic. The X-seals keep the factory-applied lube inside the bushings and minimize friction caused power loss. The choice for top horsepower bikes.

Tsubaki Delta 530 Secondary Chain
The Delta QRN 530 is a non-sealed high quality roller chain. The bushings between roller and rivet are made from sintered metal and oil impregnated (HSL), which in turn results in longer service spans. The side plates are nickel-plated for corrosion protection and good looks.
