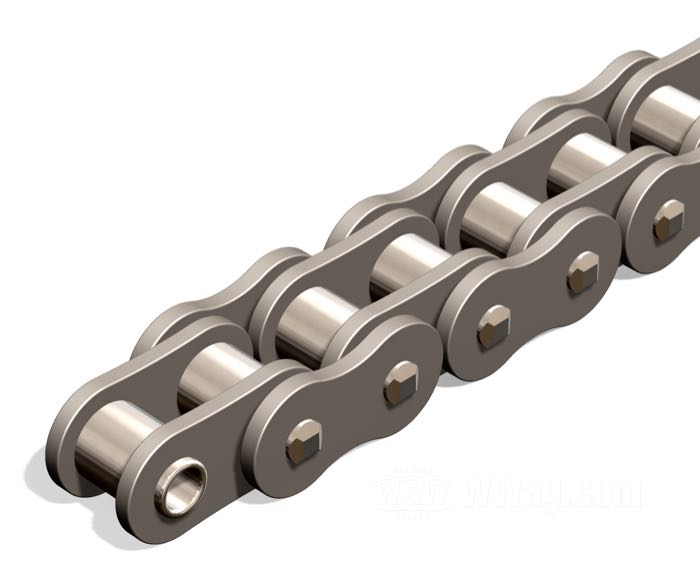

Tsubaki Sigma XRG and RQ1 530 Secondary Chain

Tsubaki Sigma XRG and RQ1 530 Secondary Chain

Select subgroup:
grey
grey
gold coloured outer plates
gold coloured outer plates
Select variant:
76-993
number of links: 102
76-997
number of links: 120
Price and stock:
Artikel-№
76-993
net price
$180.63
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.
piece
Save to wish list
Description
Facts
Good to know

The Sigma XRG 530 is the highest strength chain available from Tsubaki. While the steel coloured version keeps this name, the version with gold coloured outer plates changed it to RQ1. Quality and strength of course stay identic. The X-seals keep the factory-applied lube inside the bushings and minimize friction caused power loss. The choice for top horsepower bikes.

  • steel / rubber, grey, X-Ring
  • width: 25.2 mm
  • number of links: 102
  • pitch: 530 (5/8" x 3/8” x 10.16)
  • tensile strength: 45.1 kN
  • max. permitted horsepower: 200 hp
  • with rivet type master link
  • gross weight: 2.31 kg

Tsubaki Chains

All of our Tsubaki chains have quad-staked rivets for higher load capacity and come pre-stretched to decrease initial elongation. Advanced engineering and high production standards assure superior chain performance and value.

Spare parts:

76-999

76-999

Rivet type master link »Sigma XRS 530« by Tsubaki; steel / rubber; pitch: 530 (5/8" x 3/8” x 10.22); gross weight: 23 g
more …

Accessories:

76-998

76-998

Clip type master link »Sigma XRS 530« by Tsubaki; steel / rubber; pitch: 530 (5/8" x 3/8” x 10.22); gross weight: 25 g
more …

See also:

Tsubaki Chain Lube

Tsubaki Chain Lube

This chain lube is specially formulated for use on both sealed and non-sealed chains. A combination of oils, greases and solvents prevents corrosion and extends chain mileage.
more …
Tsubaki Chain and Engine Cleaner

Tsubaki Chain and Engine Cleaner

Specially formulated for use on all types of motorcycles. Removes heavy dirt, oil and grease deposits from chains , sprockets, frame and engines. Quick and easy to use and water soluble, so it can be washed or brushed off with water.
more …
Kellermann Breaking and Riveting Tools for Secondary Chains

Kellermann Breaking and Riveting Tools for Secondary Chains

The Kellermann chain tool allows for easy breaking of the worn chain and precise assembly of the new chain with rivet link. It is designed for chains of all common brands. Besides the main tool the kit contains a patented, magnetic positioning tool for the assembly of the connecting link. This positioning unit consists of two magnetic plates that are coupled together via a guide. This design allows a precise and comfortable positioning of the parts of the connecting link. The plates stick magnetically to the connecting link, so you have your hands free to work. Crucial for the assembly of the connecting link is, that you don't press the side plate too far onto the pins. To prevent this reliably, the plates act as a limit stop and extend to the adjacent chain links. You can see through the cut-outs in the push plate, if the side plate of the connecting link is in the correct position and when you have to stop pushing. Thus connecting link assembly errors are largely excluded and the assembly of the connecting link is becomes a straightforward task....
more …
Chain Pullers for Secondary Chains

Chain Pullers for Secondary Chains

This handy tool pulls chain ends together for easy chain link installation.
