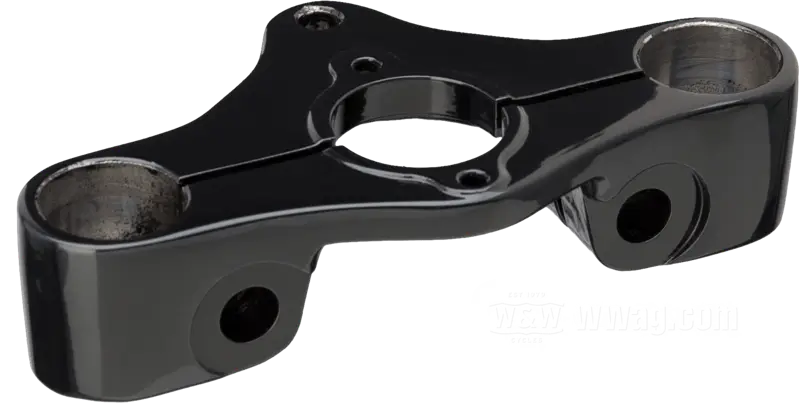

Adapters which will allow you to install any custom riser directly on top of the Springer fork side bars with internal M20x1.5 thread. The extra-long version is perfect for mounting Cannonball leaf spring handlebars. Must be used with custom upper fork clamp that - apart from stabilizing the fork - offer lateral support for the risers, to avoid flexing of the adapters.

Once upon a time when there weren’t any custom parts you could buy from your local shop, the VL fork was a very popular item because it made your Knuckle or Panhead bobber different from the next guy’s scooter. Besides you gained half an inch of length compared to 1936-up Springer forks for improved ground clearance and a more stretched look. Now it’s time to revive those days of the golden 40’s and 50’s with the Cannonball version of H-D’s VL type fork.
Manufactured just like the original, which means I-beams and connecting braces are drop forged on a huge 10 meter forge hammer. This is the only procedure that guarantees these components stand up to the job.
The problems with installing the OEM fork were the large fork stem and the handlebar mounting so the Cannonball fork is modified here. It features a Ø1” fork stem that works with the included centering collar for 1936-up ball bearings. Moreover the stem also features two Ø1” bearing seats for the use of Big Twin tapered roller bearings without any modifications. The leg tops accept the 36-up Springer inline handlebars. This makes installation a snap compared to the original counterpart.
Certificate of stability for 4-speed Big Twins thru 1986. Length is measured from axle center line to seat of lower steering head bearing.
Although these Custom forks are intended for 1936-1957 rigid frame Big Twins they can be mounted with later frames, too, provided you have/install matching frame head beariings. The builder has to consider rake, trail, overall chassis geometry, brake function, etc.

Complete and accurate reproduction of the classic H-D Springer fork as used by the factory on Big Twins 1936-49 and on 45” models from 1941–57. Manufactured just like back in the good old times, i.e. with forged legs and connecting components, which makes them equal to the original counterpart concerning stability and service life.
Use these top-quality forks as stock replacement for your restauration or as a part of your chopper or bobber project-bike.

• All brackets for brake anchor, front fender and ride control are there and just like stock.
• The dimensions of our standard forks are exactly the same as for the original Springer forks (48,5 cm = 19” from center of wheel axle to lower neck bearing seat).
• The "Builder" versions come unassembled with bare rigid and spring forks, chrome or black springs and black rockers.

Length is measured from axle center line to seat of lower steering head bearing.

These beautifully shaped risers are super heavy duty and built to last. They include stainless steel clamp bolts.

Classic risers, solid construction and beautifully chrome-plated.
