Ignition Systems Flathead, K-Model, Sportster 1937-1964
Select variant:

fits Flatheads 1937-1946; replaces OEM HD 32506-37, and 32575-37


fits Flatheads 1947-1963, K models and XL 1952-1964; with 1949→ style points; replaces OEM HD 32506-37, and 32575-49
Price and stock:
Item №
13-293
Price incl. VAT
382.89 €
Available
2
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 61.13 € German VAT.
- Ignition system
- fits Flatheads 1937-1946
- steel, CAD (ZnNi process) / chrome-plated
- use with 6 or 12 V
- primary resistance: 2-5 Ω
- replaces Harley-Davidson part number HD 32506-37, and 32575-37
- gross weight: 760 g

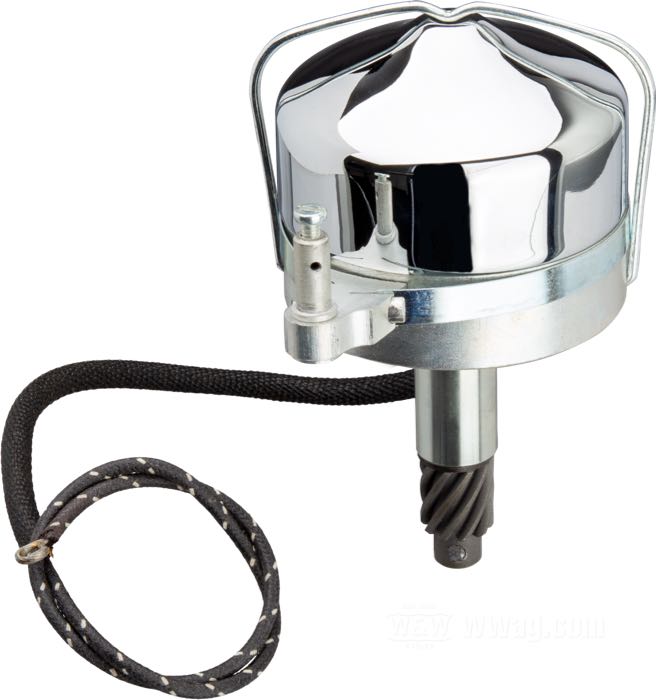

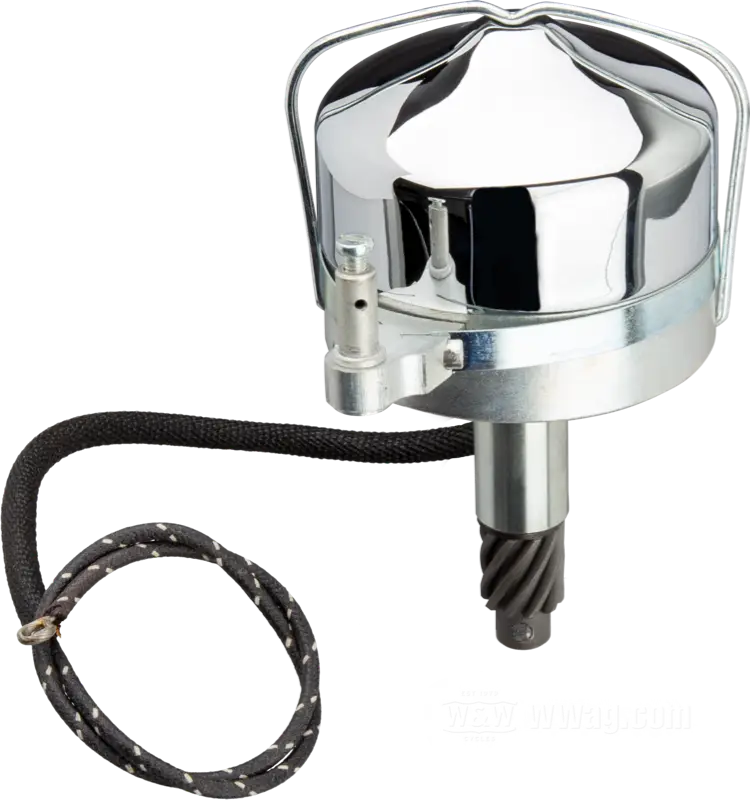

Accurate repoductions of the factory circuit breaker assembly as used on Flathead, K-Model and Sportster 1937-1964. They come complete with breaker points and condenser so it is ready to be installed.
The breaker points in this ignition system can be run on 6 V or 12 V. Please make sure that for 6 V applications the coil has a primary resistance of 2 to 2.5 ohm, and for 12 V applications of 4.5 to 5 ohm.
Spare parts:

12-034
Breaker points; fits all SV and OHV models 1930-1948; steel; replaces OEM HD 1569-30A, and 32658-30; gross weight: 20 g

57-588
Gasket by James Gaskets; for Shaft / Ignition system; fits 45 cui/750cc 1937-1973, Big Twin Flathead 1937-1948, K and Sportster 1952-1964; paper; replaces OEM HD 32522-37; gross weight: 1 g

Timer Control Strap 1936-1946
Accurate reproduction of the timer control strap and stud as used on 1936-1946 Knuckleheads and 1937-1946 Flatheads with manually operated ignition timer.

Condensers
For all models with points ignition from 1930–78.

Covers and Retainers for Ignition System 1936-1964
Accessories:

12-170
Ignition system »Vintage« by Samwel Supplies; fits models 1937-1948; use with 6 or 12 V; with module, multistrand wires, fabric wire loom, and small parts; gross weight: 140 g

12-175
Ignition system »Electronic Vintage« by Samwel Supplies; fits Knucklehead 1936, all twins 1937-1948; auto advance; use with 6 or 12 V; with module, multistrand wires, fabric wire loom, and small parts; gross weight: 170 g

Timer Brackets Flathead
Accurate reproductions of the timer brackets as used on 1937-1946 Flatheads with manually operated ignition timer. Mounts below the front intake tappet block.

Sudo Transparent Covers for Ignition Systems 1936-1970
See the breaker cam turn and the points spark with one of these transparent ignition covers. They mount like their stock counterparts and are made from strong acrylic material.

Screw Kits for Timer and Relay: 750cc
Reproductions of the mounting screws for ignition timers and relay base plate.
See also:

C. Walter Test Lamp
Sturdy test lamp to examine circuits in your lighting and ignition systems. Applicable for 6 to 24 V. Comes with protective screw-on cap, 70 cm lead and alligator clip.

Circuit Breaker to Coil Wire Assembly
Accurate reproductions of the complete wire assemblies with terminal post as used on 1936-1964 models.

Ignition Coils 1930-1947
Accurate reproductions of the square style coil as used by the factory on all models during the 1930-1947 period.

Ignition Coils 1948-1960
Reproduction of the stock coil as used on all twins 1948–1960. It combines modern technology with classic looks.
