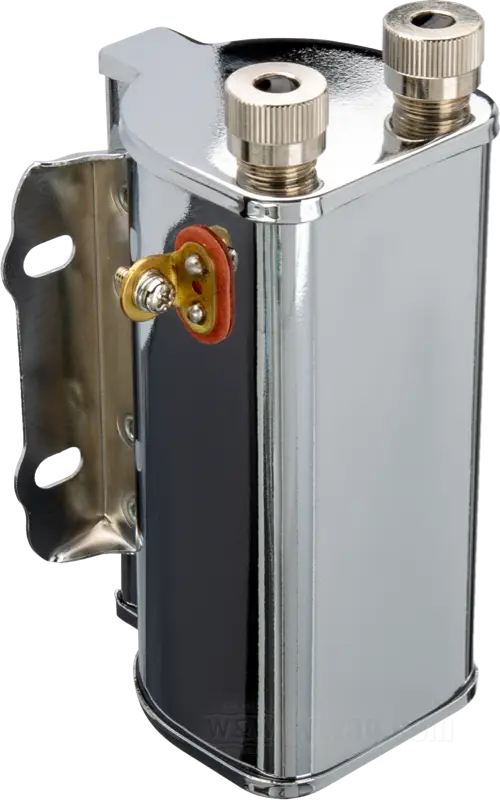

Ignition Coils 1930-1947
Select variant:
chrome-plated; use with 6 V; primary resistance: 1.0 Ω ±0.2 Ω

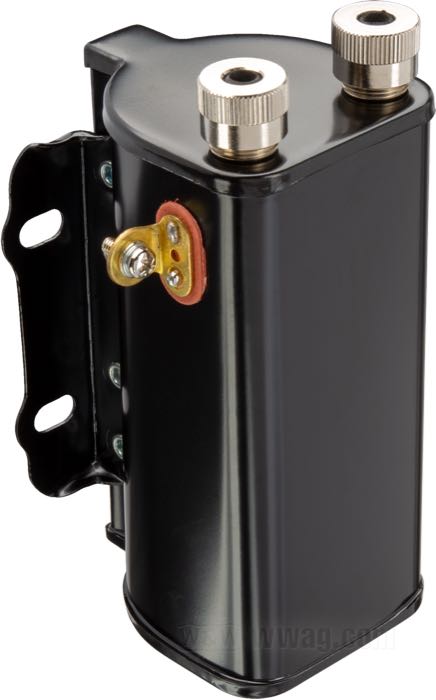

black; use with 6 or 12 V; primary resistance: 2.0 Ω ± 0.2 Ω
chrome-plated; use with 6 or 12 V; primary resistance: 2.0 Ω ±0.2 Ω
Price and stock:
Item №
12-114
Price incl. VAT
159.20 €
Available
10
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 25.42 € German VAT.
- Ignition coil
- for Circuit breaker points
- fits models 1930-1947
- chrome-plated
- use with 6 V
- primary resistance: 1.0 Ω ±0.2 Ω
- dual fire - single plug
- with wires and packing nuts
- replaces Harley-Davidson part number HD 31602-37
- gross weight: 1.26 kg
Accurate reproductions of the square style coil as used by the factory on all models during the 1930-1947 period.
To keep the amps down that the breaker points must handle, we recommend a 1 Ohm series resistor for 6 V applications.
Spare parts:
Accessories:
Reverb Vintage Ignition Wire by the Meter
Cotton-braided 16 gauge spark plug wires with a nice vintage herringbone design. Use them to fabricate your own old style ignition cables. Feature a modern PVC insulation and stranded copper core.
Universal Ignition Wire Kits
Two ignition cables with spark plug caps in different lengths, featuring a copper core and a black silicone sheath whose color blends discreetly into the bike. After cutting the two cables to length, the ignition coil connectors must be crimped on. With some aftermarket ignition coils, the cables are simply pushed onto terminals.
Brillman Vintage Ignition Wire
Vintage-style braided cotton 16 gauge spark plug wire to fabricate your own old style ignition cables. This cotton-braided wire contains modern pvc insulation and stranded copper for top performance.
Mounting Kits for Ignition Coils 1929-1947
Complete reproduction mounting kits for 45's, Big Flatheads and Knuckleheads thru 1947.
