Faber Cycle Handlebars Standard Solo Wide 1930-1934 for IOE and V Models

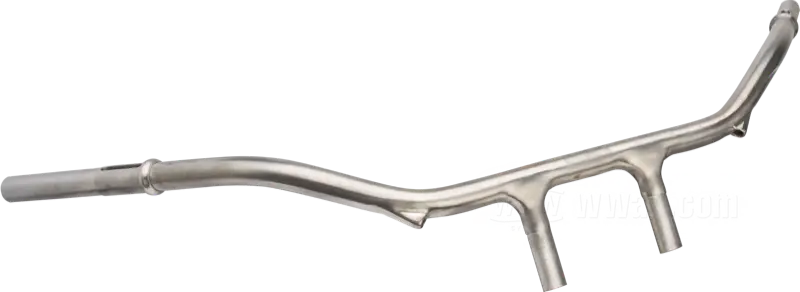

- Handlebar »Standard Solo Wide« by Faber Cycle
- fits V models 1930-1934
- steel, bare
- thread: 13/16”-24
- wall thickness: 3 mm
- USA
- gross weight: 2.15 kg
The standard solo handlebar — that is, for models without a sidecar — of the V model series from 1930 to 1934 was quite wide at 35.4”. With a pullback of 11.9”, the handlebar ends were level with the center section between the mounting stubs. This gave the rider firm and steady control over his V-model steed at all times.
Handlebars for Models with IOE engines and Early SV Models
Despite their differences in shape, pullback, wire and cable exits and so forth, all these handlebars have omne thing in common that sets them apart from later handlebar models. They have two pieces of tubing brazed to the center section which are inserted into the fork tubes and then clamped by the upper fork brace. From 1915-1939 (last W solo models with the early cushion forks) the center distance of these two pieces of tubing was 4-3/4” (short of 121 mm for our metric friends). The way the handlebars were fixed in the fork tube top ends did not allow for any adjustments. To change a rider's position, the complete handlebar had to be exchanged, plus — of course — grips spirals and cables and wires had to be dismantled. Quite a bit of a job. But on the other side, the rider who was keen on a change had due to Harley-Davidson's ample model range a wide selection of different widths, pull-backs, heights and so on to choose from.
