Dyna 2000i Programming Kit
The programming kit will bring your Dyna 2000i to the next performance level and will add the following features to specifically tune your engine:
- 8 point fully definable wide open throttle curve
- 8 point fully definable part throttle curve
- Rev limit programmable in 50 rpm steps
- Programmable rear cylinder offset, total of +/- 10 degrees
- Security lock out (pin# activated)
- Single or dual fire mode
- factory setting of 3 dead revs like stock H-D for high compression motors using an electric starter
- allows reprogramming the dead revs back to zero for kickstart bikes (= engine fires immediately)
Data Recording:
- Total engine hours
- Time at wide open throttle
- Number of engine starts
- Maximum rpm
- Seconds near rev limit

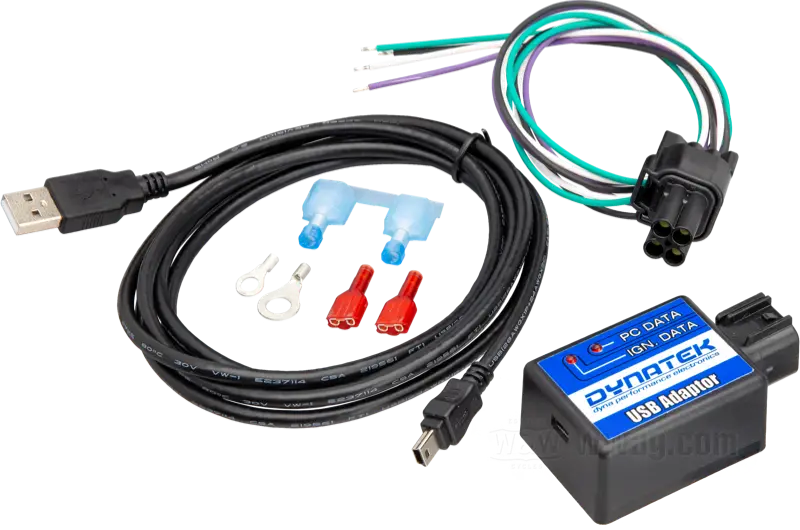

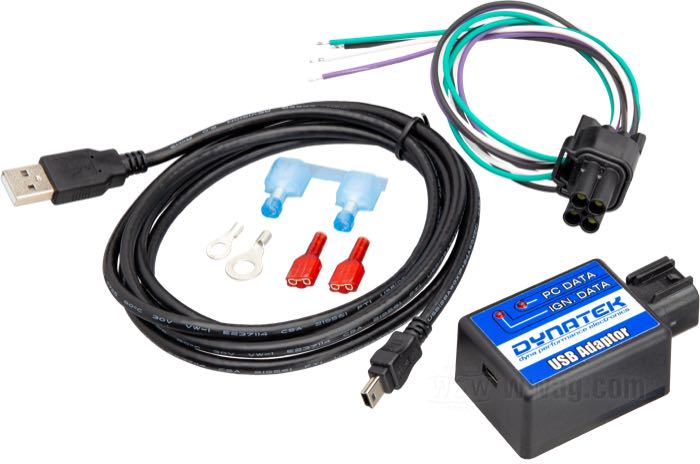

The kit consists of just the hardware: adaptor, USB cable and a harness to connec the adapter to the ignition module. Using the kit requires a PC or laptop with Windows installed (XP and onward) and a internet connection to download the Curvemaker software. The software is available as freeware from dynaonline.com under Support/Download.
- for Dyna 2000i
- fits Big Twin 1970-1999, Sportster 1971-2003
- use with 12 V
- primary resistance: 3 Ω
- gross weight: 310 g
