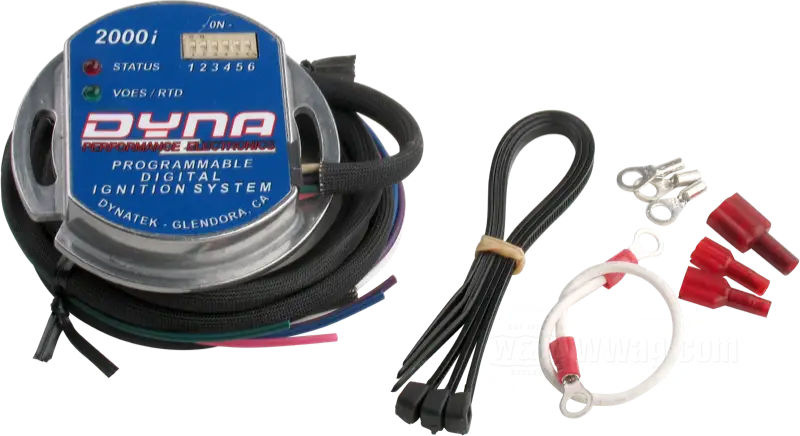

Dyna 2000i Ignition
- Ignition system »2000i« by Dynatek
- fits Big Twin 1970-1999, Sportster 1971-2003
- Ø 76 mm
- use with 12 V
- primary resistance: 3 Ω
- gross weight: 320 g
The programmable Dyna 2000i ignition system fits all 1200 and 1340 Late Shovelhead or Evolution cam covers, as well as Sportster models from 1970 to 2003. All you need in addition is the small metal rotor and a 3-ohm Evo-style ignition coil — if your bike isn’t already equipped. The Dyna 2000i replaces breaker points or stock electronic ignition systems and offers additionally several very welcome features.
It is absolutely amazing how many functions the DYNATEK engineers packed into this small unit.
- Operates as single or dual fire system with single or dual plug heads
- 8 advance curves to cover all engine builds and riding styles.
- Rev limiter adjustable from 6000 to 7500 rpm.
- Adjustable timing retard for nitrous and turbo applications.
- VOES status indicator.
- Built in hook-up for tach, shift light and auto shifters.
- Indicator for static timing.
- Intelligent over current and short circuit protection
- Avtive dwell control of coil current
- Aluminum housing and epoxy encapsulation provide resistance to shock, vibration, heat and moisture.
As delivered, the Dyna 2000i is set up for electric start. However, with the optional programming kit, it can be switched over for kickstart setups.
Accessories:

12-228

12-225

12-246

Trigger Rotor

Trigger Rotor Screw

Dyna 2000i Programming Kit
