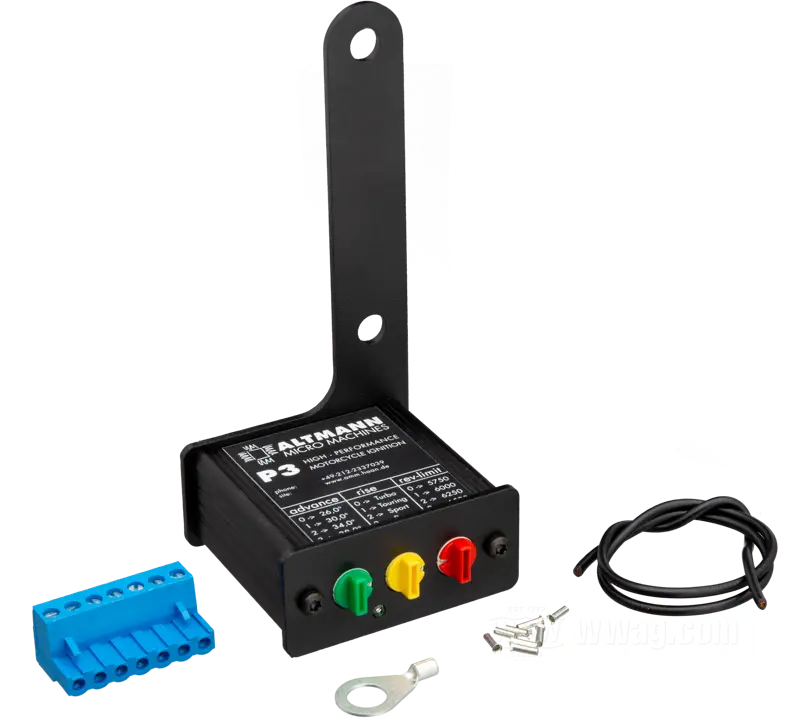

Altmann AMM-P3 Ignition Module
- Ignition module »P3« by Altmann Micro Machines
- fits Harley-Davidson Twin Cam 1999→ and Sportster 2004-2020 with carburetor
- L x W x H: 54 x 59 x 27 mm
- use with 12 V
- primary resistance: 2 x 0.8 Ω
- with connector and instructions
- Germany
- gross weight: 260 g
The heart of the P3 by AMM for Harley-Davidson Twin Cam models is a fast processor with two power output stages. The electrical connections are robust and connect the module to power, ignition coil and crank position sensor. The module is protected against reverse polarity and voltage spikes.
Three userfriendly rotary switches adjust ignition advance, steepness of the curve and rev limits. Re-adjustments are always possible - even on the raod.
To protect the electronics the unit is cased in a compact metal box. The bracket that is attached to the case is made to fit Softail models but may be removed and replaced by a self-made bracket.
