Main Shafts and Related Parts

Parts for Main Shaft



Main Shafts and Related Parts

Parts for Main Shaft

steel

Item №

Version

Price incl. VAT*

unit

Availability in warehouse Germany

77-511

Ball bearing; for 4 speed XL; fits K model and Sportster 1954-1990, Big Twin 1984-1989; also used: in clutch shell BT 1984-1989; tolerance class: ABEC 1; ID x OD: 35 x 72 mm, 17 mm thick; replaces OEM HD 9025A

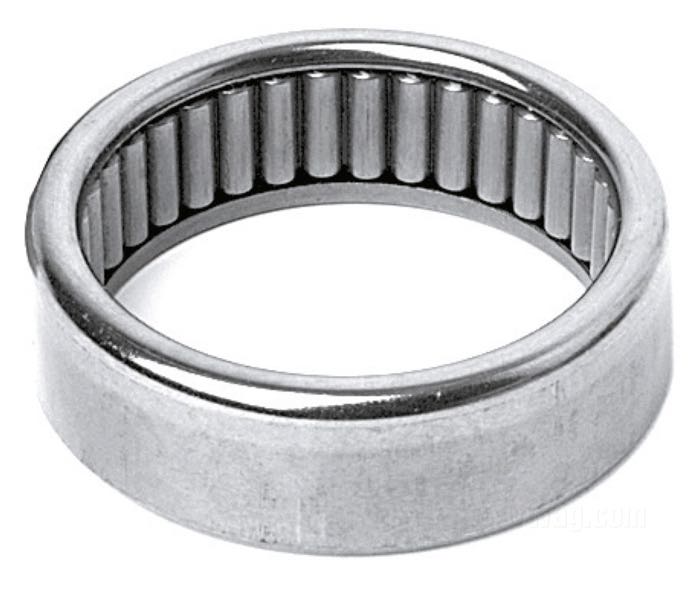

Needle bearing; fits Sportster →1990; right; OD: 1.63”, 0.75” thick; replaces OEM HD 9118

Bearing race; for Main shaft; fits Sportster Late 1984-1990; right; replaces OEM HD 35041-84; Mexico

Bushing; for Main shaft; fits K model and Sportster 1954-1983; replaces OEM HD 35105-52

Bushing; for Main shaft; fits K model and Sportster 1954-1983; Over-/Undersize: +0.005 ”; replaces OEM HD 35105-52

Retainer; fits K model and Sportster 1952-early 1984; with oil seal and gasket; replaces OEM HD 35154-52

Snap ring; for Ball bearing / Main shaft; fits K model and Sportster 1954-early 1984; replaces OEM HD 35112-52

Snap ring; for Bearing / Main shaft; fits Sportster 1984-1985; replaces OEM HD 35112-84; USA

Bearing needle; for Main shaft; fits K, Sportster 1952-1984; ground; length: 0.615”; Ø 0.1562”; tolerance class: RBEC 1; Over-/Undersize: +0.000 ”; replaces OEM HD 9095

Bearing needle; for Main shaft; fits K, Sportster 1952-1984; ground; length: 0.615”; Ø 0.1566”; tolerance class: RBEC 1; Over-/Undersize: +0.0004 ”; replaces OEM HD 9096

Bearing needle; for Main shaft; fits K, Sportster 1952-1984; ground; length: 0.615”; Ø 0.1570”; tolerance class: RBEC 1; Over-/Undersize: +0.0008 ”; replaces OEM HD 9097

Snap ring; for Roller bearing / Main shaft; fits K model and Sportster 1954-early 1984; replaces OEM HD 35113-52

Washer; for Roller bearing / Main shaft; fits K model and Sportster 1954-early 1984; replaces OEM HD 35363-52

Nut; for Transmission sprocket / Pulley; fits K, Sportster 1954-1970; steel; thread: 7/8”-20; with gasket; replaces OEM HD 35047-53; gross weight: 40 g

Nut; for Transmission sprocket / Pulley; fits Sportster 1971-early 1984; steel; thread: 7/8”-20; replaces OEM HD 35047-71A; gross weight: 30 g

Needle bearing; fits 4-speed Big Twin; steel, 1976→; length: 18.9 mm; outer Ø: 25.5 mm; replaces OEM HD 35961-52; gross weight: 30 g

O-Ring by James Gaskets; for clutch gear; fits Sportster late 1957-1969; rubber; ID x OD: 20.2 x 24 mm, 1.9 mm thick; replaces OEM HD 11103; gross weight: 10 g

O-Ring by James Gaskets; for clutch gear; fits Sportster 1967-1970; rubber; ID x OD: 24.7 x 31.7 mm, 3.5 mm thick; replaces OEM HD 11119; gross weight: 10 g

Oil seal by James Gaskets; for clutch gear; fits Ironhead Sportster 1967-1970; steel / rubber; replaces OEM HD 12021B; gross weight: 10 g

Oil seal by James Gaskets; for Main shaft; fits Sportster late 1984-1990; steel / rubber; replaces OEM HD 12049; gross weight: 10 g

Oil seal; for main shaft model K and Sportster 1952-early 1984, sprocket shaft model K and Sportster 1954-early 1976; steel / rubber; replaces OEM HD 35151-52; gross weight: 10 g

Gasket by James Gaskets; for main shaft seal retainer; fits Sportster 1957-early 1984; fiber compound; replaces OEM HD 35169-52; gross weight: 10 g

Oil seal; for clutch gear; fits Model K 1956, Sportster 1957-1959; steel / rubber; replaces OEM HD 37531-56B; gross weight: 10 g

Oil seal by James Gaskets; for Clutch hub; fits Sportster 1957-1966 (XLCH →1969); rubber / steel; replaces OEM HD 37740-57; gross weight: 9 g

Oil seal by James Gaskets; for Clutch hub; fits Sportster 1967-1970 (XLCH only 1970), maindrive gear FL 1980-1981and FX 1979-1981; rubber / steel; ID x OD: 46 x 61 mm; replaces OEM HD 37741-67; gross weight: 10 g

Tab washer; for transmission sprocket and pulley nuts; fits K, Sportster 1954-1985; sheet steel, zinc plated; replaces OEM HD 35050-52; gross weight: 10 g
