Triple Trees for Hydraulic Forks
>
Throttle Addiction Narrow Hydra-Glide Triple Trees

Triple tree kit »Narrow« by Throttle Addiction

Item №
17-863
Description
Facts

These Custom Narrow Hydra-Glide 41mm triple trees are 3" narrower than stock Hydra-Glide triple trees. Upper and lower triple trees are made in the USA from 100% cast iron and have all the detail and provisions as the early OEM Hydra-Glide triple trees. Even the lower OEM fork tube covers can be used.

In terms of available mounting clearance, the following dimensions are of interest:

  • Fork Tubes (center-to-center): 6"
  • Spool or Hub Clearance: 4.5"
  • Handlebar or Riser Mount (center-to-center): 2.5" (Original: 3.5" - T-Bars and other handlebars with integrated risers as well as risers with one-piece upper riser clamp can not be used!)

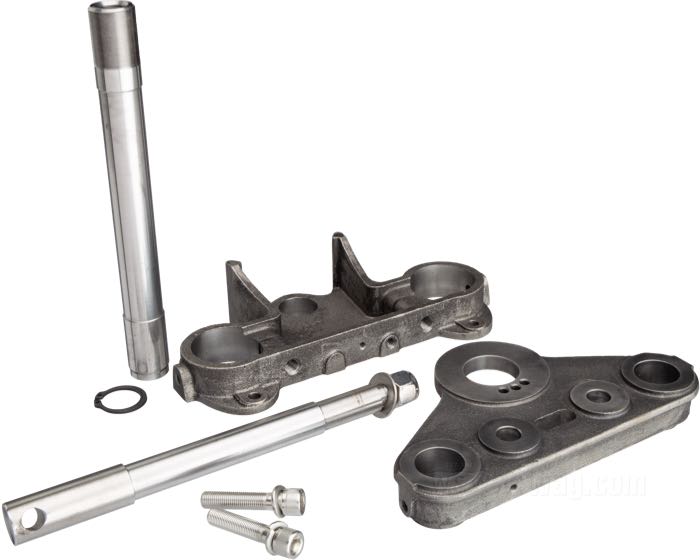

Kit includes:

  • Upper and lower narrow triple trees made of ductile iron
  • 1" stem with retaining clip
  • Front axle for a 3/4" bearing hub
  • Fork tube pinch bolts

These triple trees are narrower than stock and stock components may not work.

The manufacturer recommends using a 21x3.00 or 21x2.75 tire on a 21x1.60 or 1.50 size rim.

  • fits Hydra/Duo/Electra Glide 1936-1984
  • cast iron / steel, bare, with threads for fork covers
  • Ø fork tubes: 41 mm
  • gross weight: 3.55 kg
net price*
$820.70
* United States of America: Tax free shipping. Please check your local import fees.
In stock. Ready for immediate delivery from our Würzburg, Germany warehouse
set
Save to wish list

Artikel wurde in den Warenkorb gelegt.

Warenkorb ansehen

Accessories:

15-110

15-110

Steering head cups; for Tapered roller bearing; fits Big Twin 4-speed 1936-1986, Servi-car 1958-1973, FXST 1984-1988; for cast neck frames; steel, chrome-plated; replaces OEM HD 48311-60; gross weight: 400 g
more …
15-115

15-115

Tapered roller bearing by Timken; for steering head; fits FL, FX and Touring models 1960-2013, all Softail and Dyna models, Sportster 1982-2020, Servi-Car 1960→, all V-Rod models; steel, machined finish, height outer race: 10.65 mm, height inner race: 14.8 mm; ID x OD: 25.4 x 50.3 mm; replaces OEM HD 48300-60, and 48315-60; gross weight: 140 g
more …
26-793

26-793

Rim by Morad; aluminum; profile: flanged; rim finish: polished; 1.60x21 ”; Number of Spoke Holes: 40; metal valve in center; inner Ø: 510 mm; for wide and narrow hubs; DOT approved; Spain; gross weight: 1.6 kg
more …
Adjusting Nuts for Head Bearings

Adjusting Nuts for Head Bearings

Stock replacement adjuster nut for the steering head bearings of your Wide Glide fork.
more …
Stem Nuts for Wide Forks

Stem Nuts for Wide Forks

more …
Hydra Glide/FLH Fork Tube Covers

Hydra Glide/FLH Fork Tube Covers

Chromed fork tube covers for all wide forks with mounting ears on the lower fork brace.
more …
