The Cyclery Clincher Rims
Select subgroup:
3 x 20”
Select variant:
fits H-D IOE models 1925-1927, H-D Singles 1928-1934 rear, Indian models 1924-1928, Henderson and Excelsior Super X 1924-1928; use with tire size 26x3.85" (3.85-20); Ø of nipple holes: 6.5 mm; replaces OEM HD 3940-25
Item №
26-888
net price
336.89 €
VAT
Germany (19%)
64.01 €
Price incl. VAT
400.90 €
8
ready for immediate delivery from our Würzburg, Germany warehouse

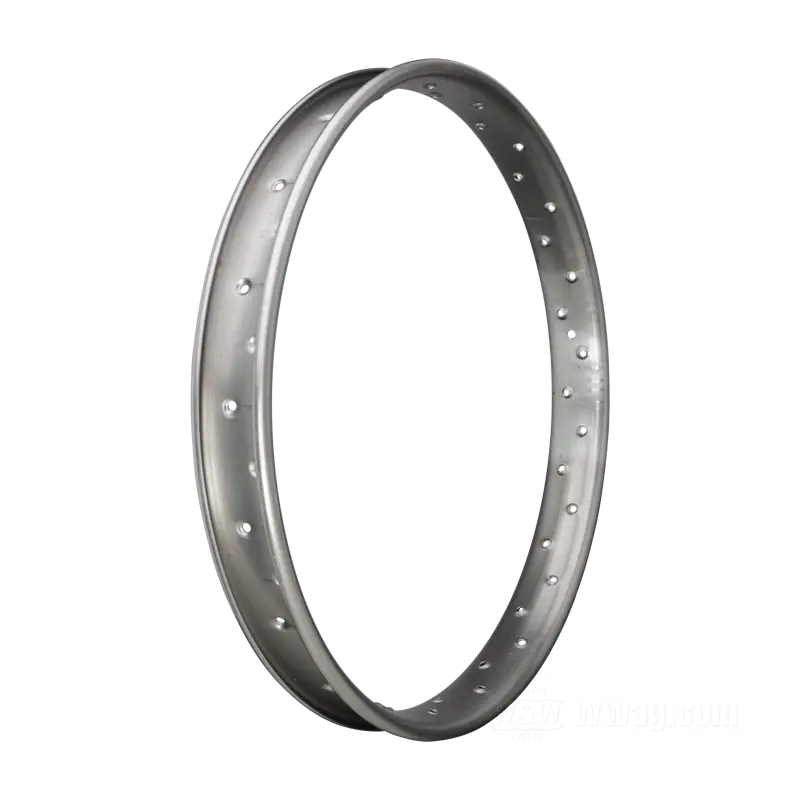

- Rim by The Cyclery
- for Clincher tire
- fits H-D IOE models 1925-1927, H-D Singles 1928-1934 rear, Indian models 1924-1928, Henderson and Excelsior Super X 1924-1928
- use with tire size 26x3.85" (3.85-20)
- profile: clincher
- rim material and finish: steel, bare
- 3x20 ”
- Number of Spoke Holes: 40
- Ø of nipple holes: 6.5 mm
- metal valve in center
- replaces Harley-Davidson part number HD 3940-25
- Europe
- gross weight: 2.26 kg
Until 1929 the factory used Clincher type rims and tires. These reproductions are faithful copies of the period parts with the distinctive slightly arched cross section.
Accessories:
26-215
Clincher tire »Chevron V« by Coker Tire; for 20” clincher rims; rubber; position: front or rear; size: 3.85 x 20”; gross weight: 6.5 kg
26-535
Clincher tire »Diamond Tread Balloon« by Coker Tire; for 20” clincher rims; rubber; position: front or rear; size: 3.85 x 20”; Vietnam; gross weight: 6.1 kg
Spoke Sets for Rear Hubs 1928-1929
The final two model years of Harley-Davidson J and JD models received a slight performance upgrade. As a result, the rear wheel was equipped with thicker spokes than those used on earlier models. The spoke sets are designed for the 20” clincher rims commonly used at the time.
Spoke Sets for Front Hubs 1928-1929
The front wheels of Harley-Davidson J and JD models were fitted with a drum brake in 1928. This so-called half-hub brake requires spokes of different lengths for the left and right sides of the wheel.
See also:
The Cyclery Rear Hubs for IOE Models 1915-1929
Reproductions of the original rear hub assemblies as used on IOE models. They come complete with all internal components installed but require to be painted or plated before final installation. To be used with stock type brake drums and sprockets.
Tire Valve Fishing Tool
Fumbling the tube valve through its hole in the wheel rim can be a real pain. This smart tool makes the job a lot easier with its 21 cm cable and "fishing hook". Just route the cable through the rim hole and attach its threaded tip to the valve core. Now you can pull the core through the rim without pinching your fingers or damaging the threads. With valve remover inside the handle.
