Shop Print and Media Service and Repair Manuals
Technical Manuals Army Models

Technical Manuals Army Models

Select variant:
96-132
»TM 9-1879«; width x height: 15 x 21.5 cm; 216 pages
96-131
»TM 9-879«; width x height: 15 x 22.5 cm; 206 pages
Price and stock:
Item №
96-132
net price
$33.60
Available
11
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.
piece
Save to wish list
  • Service manual »TM 9-1879«
  • paper
  • width x height: 15 x 21.5 cm
  • black and white
  • 216 pages
  • English
  • gross weight: 320 g

These are reprints of the war department technical manuals of 1943 and 1944 that were restricted material and handed out to service men only during that period. The manual comprises two parts: TM 9-879 and TM 9-1879.

Part I (TM 9-879) contains a description of the WLA model Harley-Davidson. In addition it contains technical information required for the identification, operation and maintenance of this motorcycle

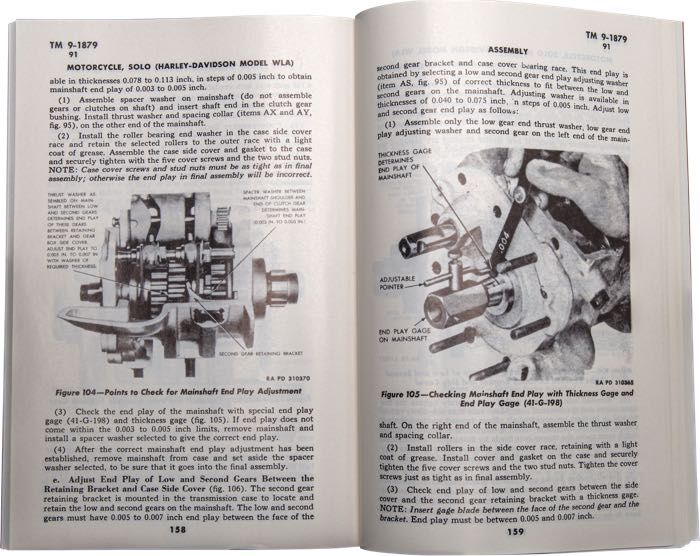

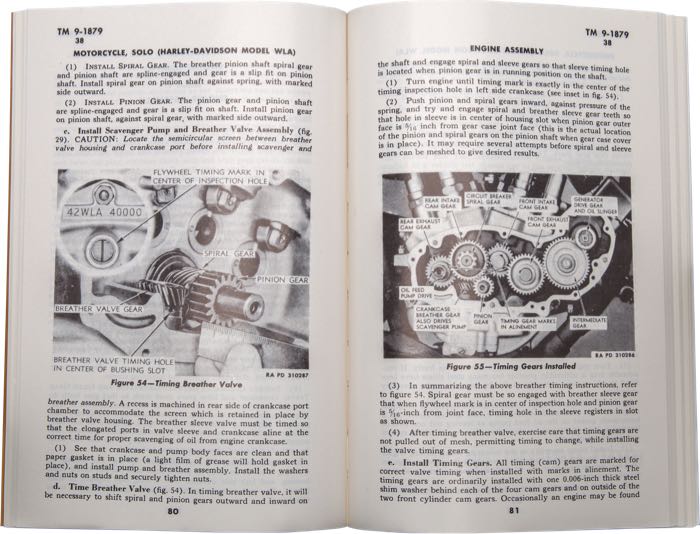

Part II (TM 9-1879) contains instructions for inspection and repair of the WLA model, including descriptions of and procedures for the disassembly, inspection and repair of engine, fuel system, ignition system, generating system, transmission, clutch and chassis.

See also:

How to Restore your Military Harley-Davidson

How to Restore your Military Harley-Davidson

The ultimate reference for correctly restoring these rare and historically significant machines. Author Bruce Palmer III is one of the top experts on 1932-1952 Harley-Davidson military bikes bringing years of research to this work. 464 pages with more than 580 archival and detail photos cover every facet of these unique motorcycles. The elaborate texts minutely describe function and composition of all assembly groups. Whether you are restoring your own Harley military model or are a student of military history, you'll find this book an invaluable reference.
more …
Motorcycle Mechanics Handbook WLA/XA

Motorcycle Mechanics Handbook WLA/XA

This high quality reprint of the US Army instruction handbook contains constructions and functions of all WLA and XA Flathead components. These are meticulously explained and illustrated with informative illustrations, partially coloured. This book is world class and provides information which also applies to many other Harley classics.
more …
A Restoration Guide for 45” H-D Twins 1929-1936

A Restoration Guide for 45” H-D Twins 1929-1936

The ultimate restoration guide for 1929-36 Harley-Davidson D & R series 45" twins, which contains more than 1750 b&w photos, with an entire chapter on paint and transfers in color. The book includes production information, model identifications, original specifications, factory service bulletins, descriptions, dimensions and photographs of hundreds of parts, as well as disassembly, repair, assembly, testing and adjusting procedures. It also includes exploded view diagrams, that were never before produced for assemblies, which include the 1929-34 three-speed transmission, 1933-37 "slant-top" reversing transmission, model 30D generator, Klaxon 11 horn, band brake assemblies, 1930-36 circuit breaker, Mesinger No. 3 saddle, ball and cone rear hub and tapered bearing rear hub, etc. The appendix includes numerous original factory studio photographs. ...
more …
