Centering collar









Item №

18-655

net price

36.48 €

VAT Germany (19%)

6.93 €

Price incl. VAT

43.41 €



48 ready for immediate delivery from our Würzburg, Germany warehouse

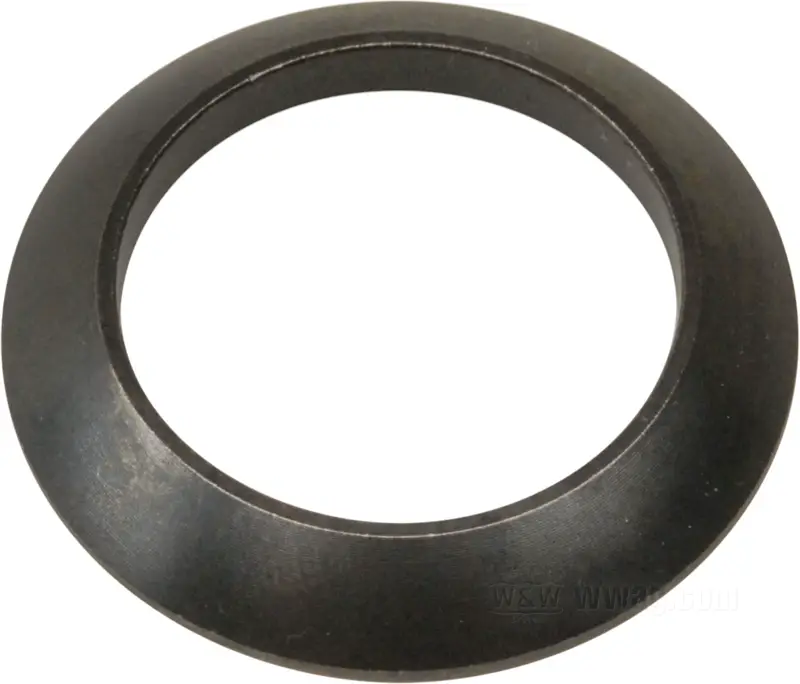

Centering collar
for Springer fork
fits Big Twin 1936-1948
with Ø 1” at lower end of fork stem
steel
tolerance class: ABEC 1
ID x OD: 25.4 x 36.7 mm
replaces Harley-Davidson part number HD 48361-38
NOTE: Centers the lower bearing cup to the steering stem.
gross weight: 20 g

Steering head bearings with loose balls are the classic design. Bearing cups, races, and balls are all individually replaceable. Before installation, they should be well greased and regularly re-greased; in this way, a steering head bearing can last for decades. Harley-Davidson used this classic design until 1977 in the Sportster models, although Big Twins were already fitted with tapered roller bearings from 1960 onward. However, ball bearings are in no way inferior, provided they are properly maintained and correctly adjusted for play.
