Standard Rear Sprockets for Big Twin 1973-1985, Sportster 1979-1981
Standard Rear Sprockets for Big Twin 1973-1985, Sportster 1979-1981
Select subgroup:
Chrome-plated
Zinc-plated
Select variant:
Price and stock:
Item №
76-486
Price incl. VAT
152.47 €
Available
16
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 24.34 € German VAT.

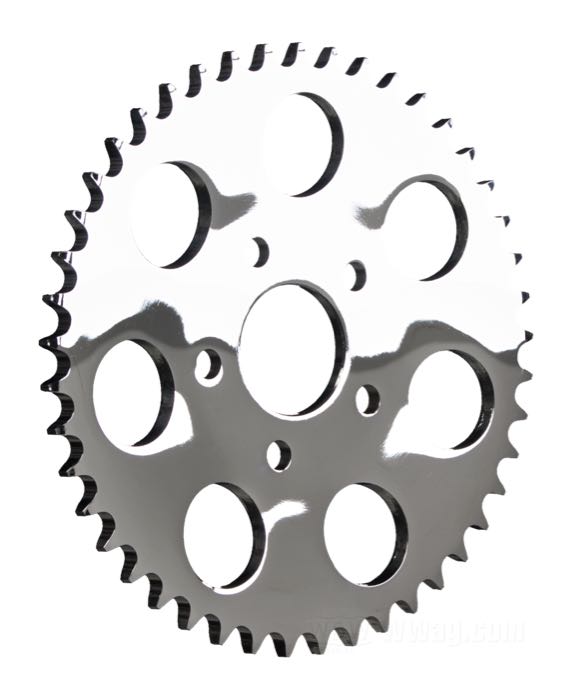

- Rear sprocket »Standard«
- fits Big Twin 1973-1985, Sportster 1979-1981
- steel, chrome-plated
- offset: 6 mm
- number of teeth: 45
- pitch: 530 (5/8” x 3/8”)
- Ø centering collar: 50 mm
- gross weight: 1.68 kg
Designed to be used with 530 chains and available as stock replacement for 4-speed Big Twins 1973-85, FXR and Sportsters. Many Custom applications are possible, too.
Accessories:
Bates Sprocket and Pulley Shims
Use one or several of these shims to establish the correct position or alignment.
Tsubaki Alpha RQ2 530 Secondary Chain
The Alpha type chain by Tsubaki is smooth running with a minimum of power loss combined with the benefits of X-sealed inside lubrication that provides a longer chain lifespan. A great chain for hi-torque, hi-horsepower performance bikes. Available as Alpha XRS in plain steel and RQ2 with gold coloured outer links. Same chain, same quality.
Tsubaki Sigma 530 Secondary Chain
The Sigma XRS 530 is the highest strength chain available from Tsubaki. While the steel coloured version keeps this name, the version with gold coloured outer plates changed it to RQ1. Quality and strength of course stay identic. The X-seals keep the factory-applied lube inside the bushings and minimize friction caused power loss. The choice for top horsepower bikes.
Tsubaki Delta 530 Secondary Chain
The Delta QRN 530 is a non-sealed high quality roller chain. The bushings between roller and rivet are made from sintered metal and oil impregnated (HSL), which in turn results in longer service spans. The side plates are nickel-plated for corrosion protection and good looks.
Offset Spacers for Rear Sprockets and Pulleys
Use to re-establish the correct alignment.
