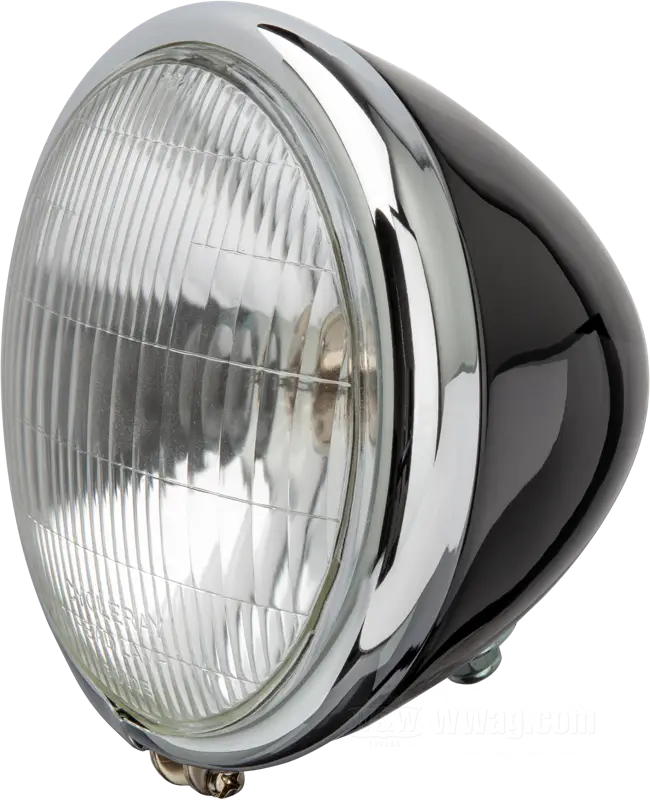

Springer Headlights 6-1/2”
Select variant:
black, painted, with Cycle-Ray stamp on housing and Cycle-Ray script and number on lens; 6 V; with 6 V bulb; replaces OEM HD 67702-35
Item №
11-748
net price
169.21 €
VAT
Germany (19%)
32.15 €
Price incl. VAT
201.36 €
Temporarily out of stock
- Headlight complete
- fits models 1935-1957 with Springer fork
- steel, black, painted, with Cycle-Ray stamp on housing and Cycle-Ray script and number on lens
- length: 135 mm
- Ø 178 mm
- for headlight insert (Ø): 6-1/2”
- bulb type: dual filament
- 6 V
- 35/35 W
- socket: P30D/2517
- pre-focus
- with 6 V bulb
- with insert
- without position light function
- replaces Harley-Davidson part number HD 67702-35
- gross weight: 1.27 kg
A good reproduction of the original equipment Cycle-Ray headlight.
Spare parts:
Replacement Parts for Springer Headlights 6-1/2”
Repair Kit for Springer Headlights 6-1/2”
Great kit for the restoration of classic Springer headlights. Inludes special carriage screws to replace lose or lost rivets and other small parts for wire terminals, bezel and bottom mount.
The Cyclery Terminal Blocks for Springer Headlights 6-1/2”
Terminal Block for headlight housing with threaded sockets and 4 slotted roundhead screws. The low-beam wire from the handlebar switch goes to the #8 screw and high beam attaches to the #10 screw, same on the inside. This way, for removing the headlight, only two wires on the outside of the headlight bucket have to be disconnected.
Bulbs American Pre-focus dual filament (P15d)
The US version of the pre-focus dual-filament bulb features a P15d base with three guide slots. The slot arrangement allows installation in only one position, ensuring the low beam filament is always correctly aligned. Original replacement for all headlights on Harley-Davidson Springer forks equipped with the original three-tab reflector.
Reflector H4 for Ø 6-1/2” Springer Style Headlights
The replacement reflector for aftermarket 6-1/2” Springer Style headlamps. Fits original factory Springer headlamps, too, where it allows for the use of modern H4 bulbs.
Accessories:
