PBI Transmission Sprockets for 4-Speed Big Twins
PBI Transmission Sprockets for 4-Speed Big Twins
Select subgroup:
for Big Twins 1936-1979
for 4 Speed Big Twins 1980-1985
Select variant:
Price and stock:
Item №
76-343
Price incl. VAT
96.54 €
Available
6
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 15.41 € German VAT.

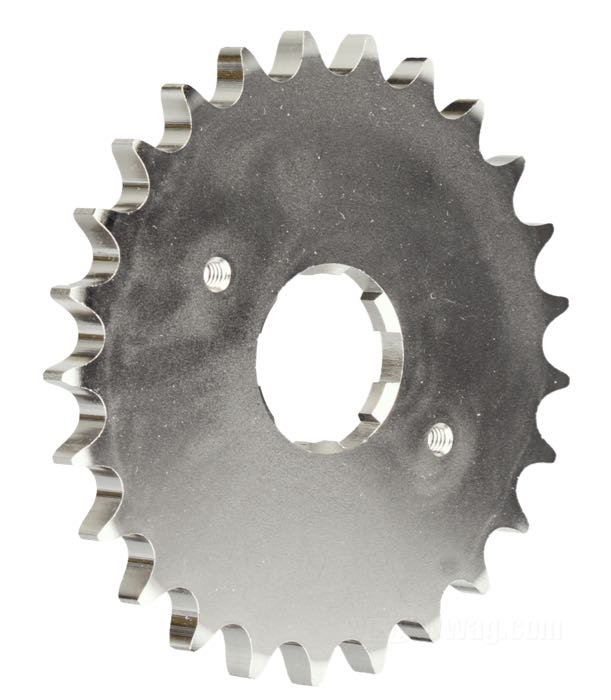

- Transmission sprocket by PBI Sprockets
- fits 4 speed Big Twins 1936-1979
- chromium-molybdenum steel, nickel-plated
- number of teeth: 25
- pitch: 530 (5/8” x 3/8”)
- with 1980-1985 style lock washer, without socket head screw
- USA
- gross weight: 759 g
Since the mid 1970es the name PBI stands for high quality sprockets. After precise manufacturing the transmission sprockets are electroless nickel-plated against corrosion. Electroless plating provides a uniform deposit thickness, disregarding the shape of the plated object.
Socket head screws for the supplied lock washer will not clear 1965-1969 primary housings. If you can't machine the lock washer and use countersunk screws, use OEM 35216-36 lock washer.
PBI sprockets →1979 need WW 77-500 to be installed between the sprocket itself and the maindrive spacer.
Accessories:
77-200
Nut; for Transmission sprocket / Pulley; fits Sportster 1991-1992, Big Twin 1936-1992; steel; 1/4” thick; thread: 1-1/2”-24 LH; replaces OEM HD 35211-36; gross weight: 50 g
77-201
Tab washer; for transmission sprocket and pulley nuts; fits 4-speed Big Twin 1936-1983; sheet steel, zinc plated; replaces OEM HD 35216-36; gross weight: 10 g
77-500
Spacer disc; for Transmission sprocket; fits 4-speed Big Twin; steel; ID x OD: 38.9 x 56.9 mm, 1.2 mm thick; replaces OEM HD 35079-80; gross weight: 10 g
77-212
Nut by Colony; for Transmission sprocket / Pulley; fits Sportster 1991-1992, Big Twin 1936-1992; steel, parkerized; 1/4” thick; thread: 1-1/2”-24 LH; with tab washer; replaces OEM HD 35211-36; USA; gross weight: 10 g
Tsubaki Alpha RQ2 530 Secondary Chain
The Alpha type chain by Tsubaki is smooth running with a minimum of power loss combined with the benefits of X-sealed inside lubrication that provides a longer chain lifespan. A great chain for hi-torque, hi-horsepower performance bikes. Available as Alpha XRS in plain steel and RQ2 with gold coloured outer links. Same chain, same quality.
Tsubaki Sigma 530 Secondary Chain
The Sigma XRS 530 is the highest strength chain available from Tsubaki. While the steel coloured version keeps this name, the version with gold coloured outer plates changed it to RQ1. Quality and strength of course stay identic. The X-seals keep the factory-applied lube inside the bushings and minimize friction caused power loss. The choice for top horsepower bikes.
Tsubaki Delta 530 Secondary Chain
The Delta QRN 530 is a non-sealed high quality roller chain. The bushings between roller and rivet are made from sintered metal and oil impregnated (HSL), which in turn results in longer service spans. The side plates are nickel-plated for corrosion protection and good looks.
