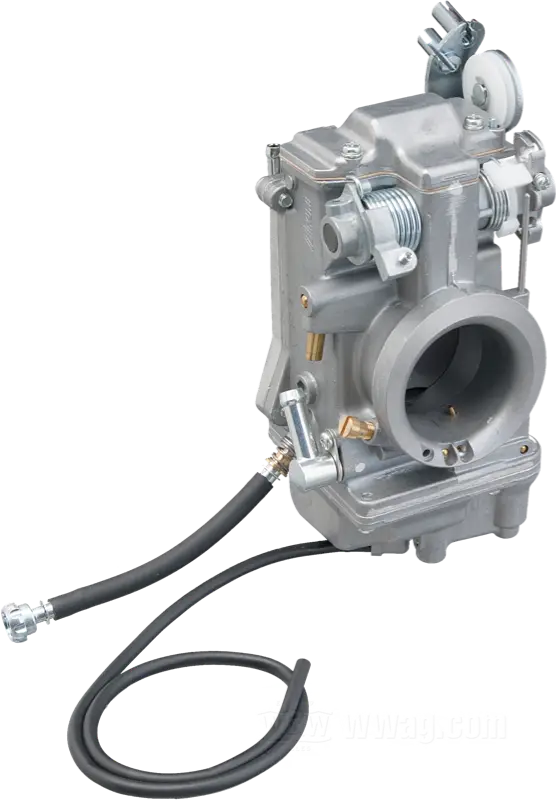

Mikuni HSR 42 Carburetor Kits certified

- Slide carburetor »HSR42« by Mikuni
- fits Evolution Big Twin 1992-1994 (except FLT/FLHT)
- cast aluminum, industrial finish
- with air cleaner adapter
- with parts certificate
- gross weight: 1.93 kg
The upgraded versions of the proven HS40 flat slide carburetor deliver optimized performance for high-output Harley-Davidson engines. The main difference from the predecessor is the enlarged intake bore, available in 42 mm and 45 mm diameters, which significantly increases cylinder filling. The 45 mm version is specifically designed for large-displacement engines from 98 cui upwards or for racing applications.
Technical enhancements such as the two-piece flat slide running on precision stainless steel roller bearings ensure improved throttle response. A refined return spring offers smoother throttle operation and enhances rider comfort. Additional features include an idle mixture adjustment screw, enlarged needle valve, bigger float bowl, and an adjustable accelerator pump.
The result: excellent starting behavior, powerful torque delivery, and enhanced rideability across the entire RPM range. Installation is straightforward with the included mounting and tuning instructions. The original Harley-Davidson choke cable remains compatible.
Spare parts:
Gaskets for Mikuni Top Cover
O-Rings for Mikuni Float Bowls
O-Rings for Mikuni Float Bowl Drain Plugs
O-Rings for Mikuni Float Valves
Dust Cover for Mikuni Choke Cable
O-Rings for Mikuni HSR 42 and 45 Air Screw
O-Rings for Mikuni HSR 42 and 45 Air Cleaner Adapter
Socket Head Screws Stainless
Replacement Parts for Mikuni HSR 42 and 45 Carburetors
Main Jets for Mikuni HS 40 and HSR 42/45 Carburetors
Idle Jets for Mikuni HS 40 and HSR 42/45 Carburetors
Jet Needles for Mikuni HSR 42 Carburetors
Needle Jets for Mikuni HSR 42 and 45 Carburetors
Replacement Parts for Mikuni Crankcase Breather Kit
Accessories:
Bates Manifold Clamp Bolts
Air Cleaner Adapters for Mikuni HSR 42 and 45
The GasBox Carburetor Support Brackets Ironhead XL
PVC Carburetor Vent Lines/Overflow Hoses
S&S Rubberband Manifold Clamps
Custom O-Ring Manifold Clamps
Manifold Adaptors for Dell'Orto,Mikuni and CV Carburetors
Mooneyes Idle Adjuster Screws for HSR 42/45 Carbs
Bates O-Ring Manifold Clamps
Throttle Cables for Throttle Grip Set 1981-1995 with Mikuni HSR42
Throttle Cables for Throttle Grip Sets 1996→ with Mikuni HSR42
Crankcase Breather Kits for Mikuni Carburetors
S&S O-Ring Manifold Clamps
O-Ring Manifold Clamps
Aircraft Style O-Ring Manifold Clamps
Rubberband Manifold Clamps
Brass Rubberband Manifold Clamps
Aircraft Style Rubberband Manifold Clamps
Custom Rubberband Manifold Clamps
Helix PU Carburetor Vent Lines/Overflow Hoses
