KPM Cast Iron Valve Guides
Select subgroup:

for Knucklehead 1000+1200cc 1936-1947


for Flathead 750cc 1941→

for Flathead 1200+1300cc 1937-1948

for Panhead and Shovelhead 1200cc 1948-1980

for Shovelhead 1340cc 1978-1984

for Sportster 900+1000cc 1957-1985

for Evo Sportster →2003 and Evo Big Twin/Twin Cam →2004

for Sportster 2004-2020 and Twin Cam 2005-2017
Select variant:

Ø 16.34 mm; Over-/Undersize: +0.000 ”; replaces OEM HD 18185-40


Ø 16.40 mm; Over-/Undersize: +0.002 ”; replaces OEM HD 18187-40

Ø 16.44 mm; Over-/Undersize: +0.004 ”

Ø 16.50 mm; Over-/Undersize: +0.006 ”

Ø 16.55 mm; Over-/Undersize: +0.008 ”

Ø 16.98 mm; Over-/Undersize: +0.025 ”
Price and stock:
Item №
61-316
Price incl. VAT
16.90 €
Available
15
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 2.70 € German VAT.
Kibblewhite has researched, tested and chemically separated several cast iron blends, and ultimately specified a combination of ingredients to meet the needs of Harley-Davidson engines. KPM material includes specific amounts of key elements such as carbon, silicon, manganese, nickel, copper and sulfur to create a highly pearlitic structure wit dense fine grains for excellent wear resistance. This "recipe" also allows for a superior surface fnish in the guide bore that is easy on valve stems.

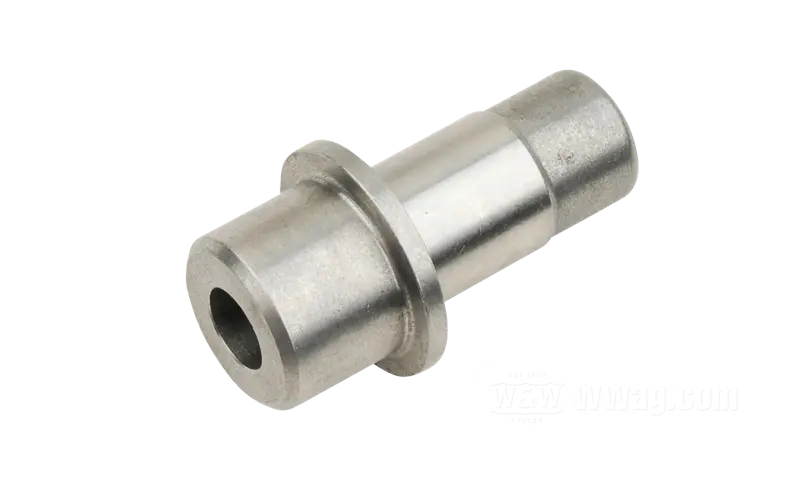

- Valve guide by Kibblewhite Precision Machining
- fits Knucklehead 1000+1200 cc 1936-1947
- Intake and exhaust
- cast iron
- Ø 16.34 mm
- Over-/Undersize: +0.000 ”
- replaces Harley-Davidson part number HD 18185-40
- USA
- gross weight: 67 g
