KPM Cast Iron Valve Guides
Select subgroup:
for Flathead 750cc 1941→
for Flathead 1200+1300cc 1937-1948
for Knucklehead 1000+1200cc 1936-1947
for Panhead and Shovelhead 1200cc 1948-1980
for Shovelhead 1340cc 1978-1984
for Sportster 900+1000cc 1957-1985
for Evo Sportster →2003 and Evo Big Twin/Twin Cam →2004
for Sportster 2004-2020 and Twin Cam 2005-2017
Select variant:
Ø 14.34 mm; Over-/Undersize: +0.000 ”; replaces OEM HD 18176-41
Ø 14.365 mm; Over-/Undersize: +0.001 ”; replaces OEM HD 18179-41
Ø 14.39 mm; Over-/Undersize: +0.002 ”; replaces OEM HD 18180-41
Ø 14.59 mm; Over-/Undersize: +0.010 ”
Price and stock:
Artikel-№
61-313
net price
$23.47
Available
48
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.

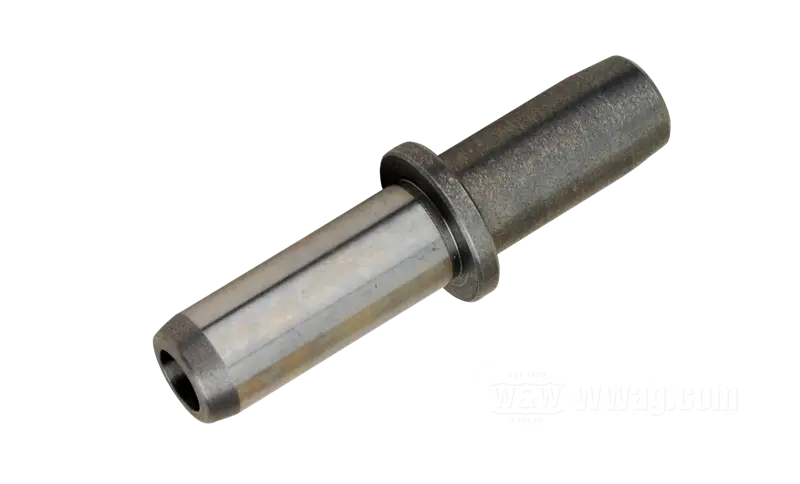

Kibblewhite has researched, tested and chemically separated several cast iron blends, and ultimately specified a combination of ingredients to meet the needs of Harley-Davidson engines. KPM material includes specific amounts of key elements such as carbon, silicon, manganese, nickel, copper and sulfur to create a highly pearlitic structure wit dense fine grains for excellent wear resistance. This "recipe" also allows for a superior surface fnish in the guide bore that is easy on valve stems.
- Valve guide by Kibblewhite Precision Machining
- fits 45”/750cc 1941→
- Intake and Exhaust
- cast iron
- Ø 14.34 mm
- Over-/Undersize: +0.000 ”
- replaces Harley-Davidson part number HD 18176-41
- USA
- gross weight: 60 g
