Knucklehead Gas Tanks
Select variant:
fits Knucklehead 1940-1946; required petcock: 3/4”-18 HD Push/Pull; replaces OEM HD 3501-41, 3502-41, 3501-40A, 3502-40A, 61202-41, and 61229-41; NOTE: For use on 1940 Knucklehead simply remove the strip mounts.
fits Knucklehead 1936-1939; required petcock: 3/8” NPT and 1/8” NPT; replaces OEM HD 3501-36, and 3502-36
Price and stock:
Item №
35-102
Price incl. VAT
1,079.76 €
Available
2
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 172.40 € German VAT.
- Gas tank »3.5 gal«
- for Skull/Cateye dash panel
- fits Knucklehead 1940-1946
- steel
- volume: 13 l
- required gas cap: cam-style 1936-1954 / 2 x vented
- required petcock: 3/4”-18 HD Push/Pull
- required petcock: 3/4”-18 HD Push/Pull
- replaces Harley-Davidson part number HD 3501-41, 3502-41, 3501-40A, 3502-40A, 61202-41, and 61229-41
- Taiwan
- NOTE: For use on 1940 Knucklehead simply remove the strip mounts.
- gross weight: 6.1 kg

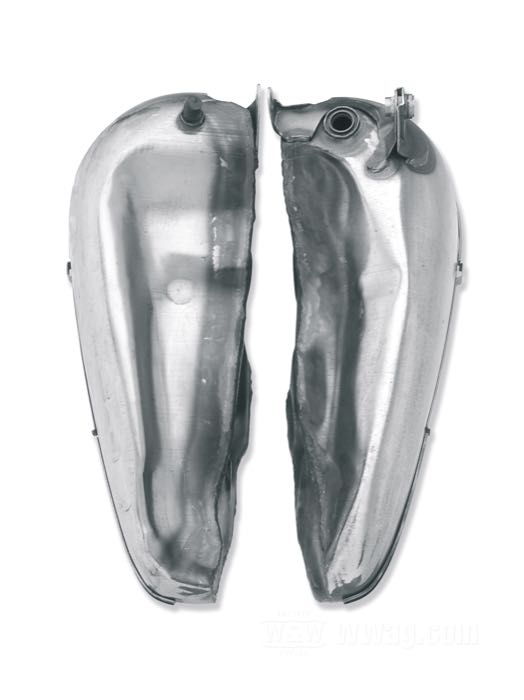

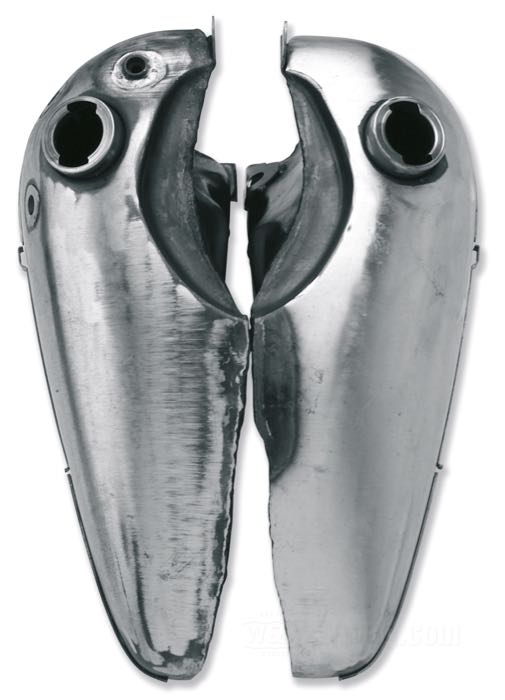

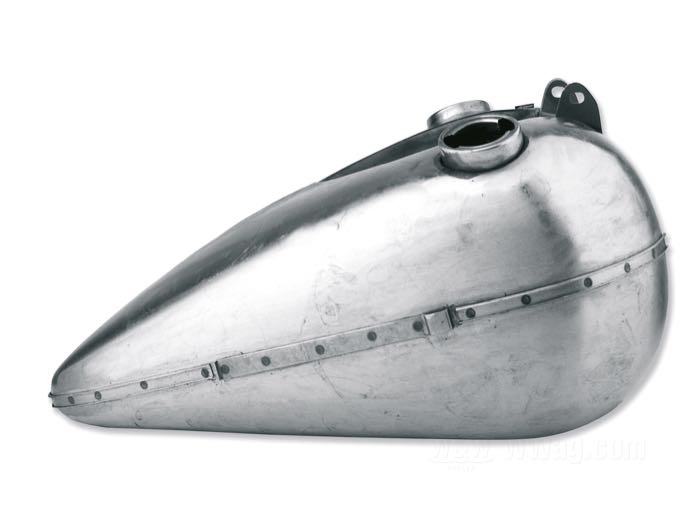

Reproductions of the 3-1/2 gallon Knucklehead gas tanks as used from 1936–1946, made to accept the Skull/Cateye dashplate and cover plus hand shifter gate. The 1936-1939 version accepts the stock type left and right petcocks, the 1940-1946 is made for push-pull gas valves and features all mounts for emblems and strips.
All gas tanks by W&W Cycles are delivered unpainted and unsealed. Before the paint job and final installation please consider the following:
- We consistently receive tight gas tanks from the manufacturers, both Custom and OEM replacements.
- Problems mostly occur during or after installation. Hence, before a pressure test and before painting - a probationary tensionless installation is highly recommended. Any leverage on the tank mounts spells trouble. Better use our selection of small parts.
- To avoid corrosion always fill your tank to the max during longer downtimes or seal it on the inside.
Accessories:
90-510
Tank name plates; fits models 1940-1946; steel, chrome / red / black; length: 176 mm; replaces OEM HD 61775-40, and 61769-40; Taiwan; gross weight: 200 g
90-512
Trim strip set; for Gas tank; fits models 1941-1946; stainless steel, polished, used with #90-510; replaces OEM HD 3514-41, 3514-41A, 61799-41, and 61800-41; gross weight: 100 g
Tool for Push-Pull Fuel Valves
The only cure against hard to operate or leaking shut-off valves. This tool corrects the alignment and adjusts distance of bottom and top holes.
Gas Tank Mounting Big Twin 1937-1975
These kits contain exact duplicates of fasteners used to mount stock gas tanks on original frames.
See also:
Tankdoc Gas Tank Restoration Kits
Rust inside the motorcycle tank can significantly affect the function and safety of your Harley. Even small rust particles can break off and enter the fuel system, clogging the carburetor, fuel injection system, and fuel lines....
KRM Tank Cleaner and Sealer
Formerly Kreem, now KRM: Recommended for older gas tanks which are rusty or dirty on the inside. Tank prep A & B remove corrosion and prepare the surface for the KRM Sealer. The Sealer cures hairline cracks (not holes!) and its tough white skin permanently seals the tank and permanently protects it against rust. One bottle contains enough sealer for tanks up to 13 liters capacity.
VG Big Twin Rigid Frames
Reproduction frames which can be used as stock replacements or as a basis to build a bobber or chopper from scratch. Dimensions and details closely follow the factory counterparts. Most castings feature raised numbers and markings just like the factory used them. The brake shaft tube has pressed-in bushings which are reamed to size. Each frame comes with its year correct toolbox mount.
