Jims Header Pipe Stud Drilling Jigs

Jims Header Pipe Stud Drilling Jigs

Drilling jig by Jims; for Studs / Header pipe; fits Evolution, Twin Cam, Milwaukee Eight, and Buell (exc. 1125R) cylinder heads; gross weight: 160 g
Drilling jig by Jims; for Studs / Header pipe; fits Evolution, Twin Cam, Milwaukee Eight, and Buell (exc. 1125R) cylinder heads; gross weight: 160 g
Drilling jig by Jims; for Studs / Header pipe; fits Evolution, Twin Cam, Milwaukee Eight, and Buell (exc. 1125R) cylinder heads; gross weight: 160 g
Drilling jig by Jims; for Studs / Header pipe; fits Evolution, Twin Cam, Milwaukee Eight, and Buell (exc. 1125R) cylinder heads; gross weight: 160 g
Inline Gallery Thumbnail
Inline Gallery Thumbnail
Inline Gallery Thumbnail
Inline Gallery Thumbnail
Item №
98-396
net price
165.97 €
VAT Germany (19%)
31.53 €
Price incl. VAT
197.50 €
5 ready for immediate delivery from our Würzburg, Germany warehouse
set
Save to wish list
Facts
Description

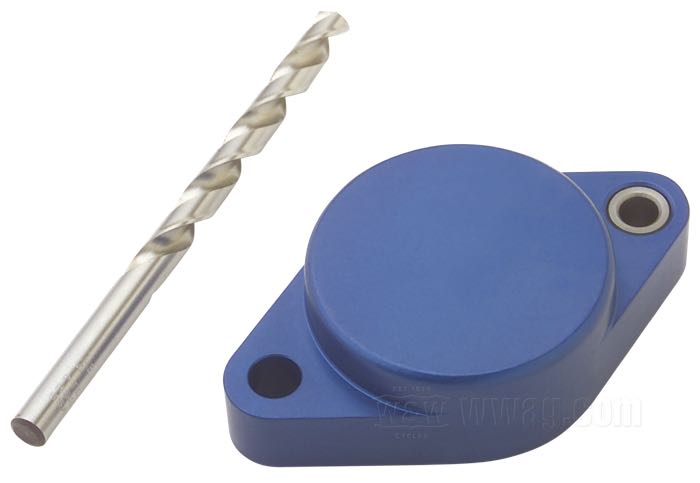

  • Drilling jig by Jims
  • for Studs / Header pipe
  • fits Evolution, Twin Cam, Milwaukee Eight, and Buell (exc. 1125R) cylinder heads
  • gross weight: 160 g

Designed to guide and keep alignment of drill bit in order to completely drill out broken exhaust stud. A follow up with a tap is all that is needed to clean up threaded hole. This tool can be used with motor in most frames.
