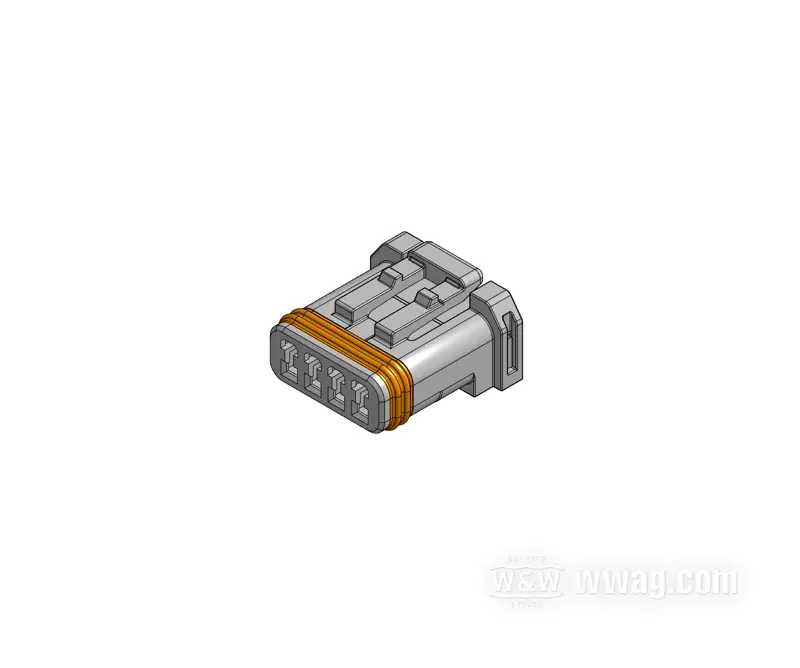

Socket housing »MX 19« by JAE
Price and stock:
Item №
14-530
Price incl. VAT
13.01 €
Available
80
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 2.08 € German VAT.
- Socket housing »MX 19« by JAE
- 4-way
- PBT / silicone, grey
- for wires: ~ up to 0.5 mm² (up to AWG 20)
- replaces Harley-Davidson part number HD 69201179
- Japan
- gross weight: 1 g
Introducing the CAN-Bus by the Factory required new connectors for low current applications on lighting and handlebar controls. These wire connections have to be especially protected due to the way the CAN-Bus works.
The MX19 connector series stands out for the following:
- Being waterproof
- Mechanical positive lock
- Additional protection for the wire insulation on the rear of the connector housings
- Small dimensions
- Ok for currents up to 5 A
Accessories:
See also:
Electric Wires Standard - 0.5 mm²
Electric Wires Standard - 0.34 mm²
Permatex Tune-Up Dielectric Grease
This dielectric grease is designed for any type of electrical connections and terminals. Applications are spark plug connectors, battery terminals, plugs, switches, bulbs, ignition coil terminals and fuses, which are efficiently protected from dirt, moisture, salt and corrosion. Before application, surfaces should be cleaned, and the ignition switched off.
Engineer PA-20 Crimptool
Crimp tool for small and medium sized connector pins as used for example with JAE MX19. Precise and universal crimping.
