Brake Base Plate Assemblies

Select variant:
27-198
fits Big Twin 1963-1972; black, powder-coated; replaces OEM HD 41646-63, 42300-63, and 41744-58
27-196
fits Big Twin 1958-1962; black, powder-coated; replaces OEM HD 41646-58
 27-197
fits Big Twin 1958-1962; chrome-plated; replaces OEM HD 41646-58
Price and stock:
Item №
27-198
Price incl. VAT
397.34 €
Available
14
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 63.44 € German VAT.
kit
Save to wish list
Description
Facts

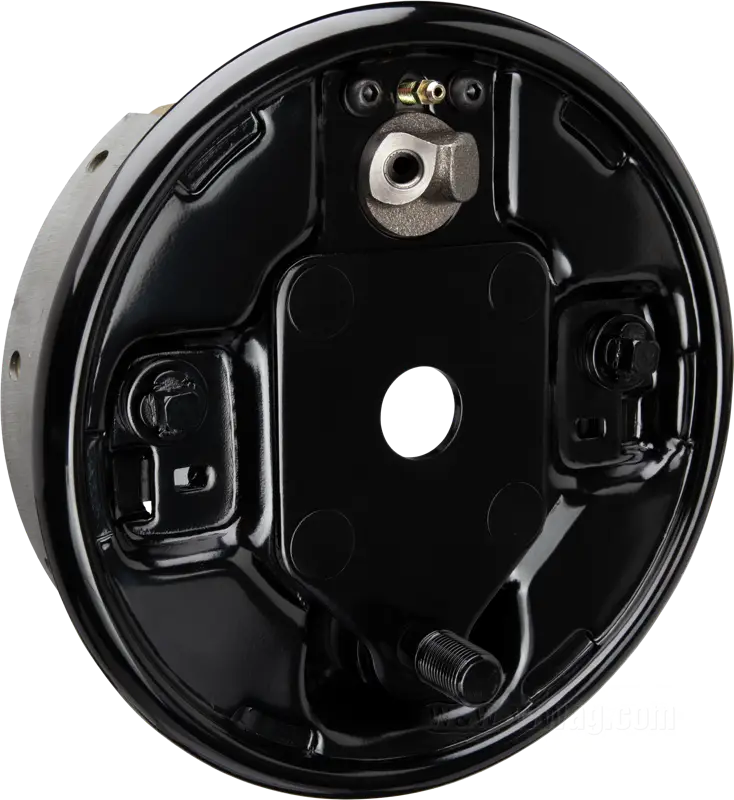

Reproductions of the stock base plates of the rear brakes for swingarm frame Big Twins including brake shoes and all important small parts. It takes just the brake drum and the axle spacer to complete the brake.

  • Brake base plate
  • fits Big Twin 1963-1972
  • rear
  • steel, black, powder-coated
  • replaces Harley-Davidson part number HD 41646-63, 42300-63, and 41744-58
  • gross weight: 3.01 kg

Spare parts:

26-376

26-376

Axle sleeve; fits Big Twin 1963-1966; rear; steel; thread: 1”-20; replaces OEM HD 41600-63; gross weight: 260 g
more …
26-377

26-377

Axle sleeve; fits Big Twin 1967-1972; rear; steel; thread: 1”-20; replaces OEM HD 41600-67; gross weight: 120 g
more …
28-404

28-404

Linings; for Brake shoes; fits Big Twin 1963-1972; rear; fiber compound; width: 38/46 mm; 4.5 mm thick; replaces OEM HD 41808-63; NOTE: Narrow lining in rear position, wide lining in front.; gross weight: 220 g
more …
28-593

28-593

Brake shoes; fits Big Twin 1963-1972; rear; steel / fiber compound; width: 38/46 mm; replaces OEM HD 41801-63; NOTE: Narrow shoe installed in rear position, wide shoe in front.; gross weight: 820 g
more …
28-642

28-642

Brake drum; fits Big Twin 1963-1966; rear; cast iron, chrome-plated; thread: 3/8”-20; replaces OEM HD 41400-63; gross weight: 5.16 kg
more …
28-643

28-643

Brake drum; fits Big Twin 1967-1972; rear; cast iron, chrome-plated; thread: 3/8”-20; replaces OEM HD 41400-67; gross weight: 5 kg
more …
28-810

28-810

Wheel brake cylinder »Standard«; fits Big Twin 1963-1972; cast iron / steel / rubber; required brake fluid: DOT 3 or 5; replaces OEM HD 41740-63; gross weight: 530 g
more …
Springs for Brake Shoes - Big Twin 1963-1972

Springs for Brake Shoes - Big Twin 1963-1972

more …
