Brake Base Plate Assemblies

Select variant:
27-196
fits Big Twin 1958-1962; black, powder-coated; replaces OEM HD 41646-58
27-197
fits Big Twin 1958-1962; chrome-plated; replaces OEM HD 41646-58
 27-198
fits Big Twin 1963-1972; black, powder-coated; replaces OEM HD 41646-63, 42300-63, and 41744-58
Price and stock:
Item №
27-196
Price incl. VAT
381.75 €
Available
4
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 60.95 € German VAT.
kit
Save to wish list
Description
Facts

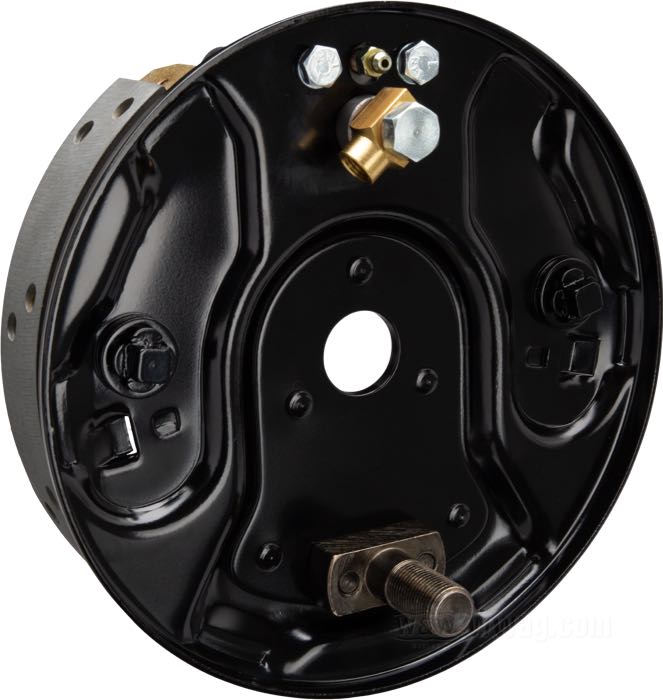

Reproductions of the stock base plates of the rear brakes for swingarm frame Big Twins including brake shoes and all important small parts. It takes just the brake drum and the axle spacer to complete the brake.

  • Brake base plate
  • fits Big Twin 1958-1962
  • rear
  • steel, black, powder-coated
  • replaces Harley-Davidson part number HD 41646-58
  • gross weight: 2.45 kg

Spare parts:

26-375

26-375

Axle sleeve; fits Big Twin 1958-1962; rear; steel; thread: 1”-20; replaces OEM HD 41600-58; gross weight: 230 g
more …
28-402

28-402

Linings; for Brake shoes; fits Big Twin 1958-1962; rear; fiber compound; width: 33 mm; 4.5 mm thick; gross weight: 140 g
more …
28-592

28-592

Brake shoes; fits Big Twin 1958-1962 and K-Tech rear brake; rear; steel / fiber compound; width: 34 mm; replaces OEM HD 41801-58A; gross weight: 710 g
more …
28-805

28-805

Wheel brake cylinder by Accel; fits Big Twin 1958-1962; cast iron / steel / rubber; required brake fluid: DOT 3 or 5; replaces OEM HD 41740-58; gross weight: 400 g
more …
Springs for Brake Shoes - Big Twin 1958-1962

Springs for Brake Shoes - Big Twin 1958-1962

more …

Accessories:

Junior's Rigid Frame Offset Lugs for Hydraulic Brake Base Plates

Junior's Rigid Frame Offset Lugs for Hydraulic Brake Base Plates

It's no really big deal to mount a 1958-1962 hydraulic drum brake in a rigid frame. But if you place the stock baseplate 5/8”-18 threaded lug bolt in the frame casting where the up to 1957 lug goes you'll have 1/4” of unwanted space and the brake line fitting will be placed right away to the very rear. No pretty thing either....
more …
