Gas and Oil Tanks for 45”/750cc Flathead Models 1937→
Price and stock:
Item №
35-101
Price incl. VAT
1,539.87 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 245.86 € German VAT.

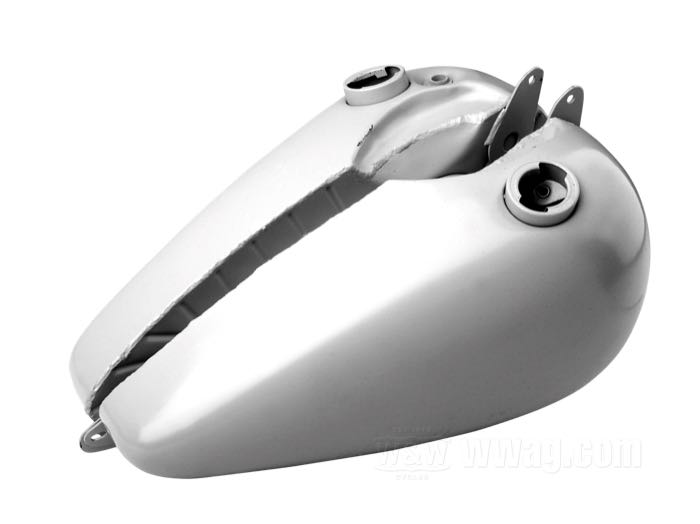

- Gas and oil tanks
- fits 750cc Flathead Solo, Servi-Car 1937-1946
- sheet steel
- required petcock: 3/4”-18 HD Push/Pull
- replaces Harley-Davidson part number HD 61237-51
- gross weight: 7.7 kg
These tanks are a high-quality reproduction of the original Harley-Davidson 750 cc tanks from 1940 to 1946 for Solo and Servi-Car models. Visually and functionally, they closely follow the historic original – ideal for authentic restorations or period-style custom projects.
The tanks feature all original-style details:
- Mounting points for the shift gate
- Fitting for the fuel valve with operating shaft running through the tank
- Cut-out for speedometer and matching base plate
All gas tanks by W&W Cycles are delivered unpainted and unsealed. Before the paint job and final installation please consider the following:
- We consistently receive tight gas tanks from the manufacturers, both Custom and OEM replacements.
- Problems mostly occur during or after installation. Hence, before a pressure test and before painting - a probationary tensionless installation is highly recommended. Any leverage on the tank mounts spells trouble. Better use our selection of small parts.
- To avoid corrosion always fill your tank to the max during longer downtimes or seal it on the inside.
Spare parts:
Accessories:
86-482
Seal washer; for Drain plug; brass; ID x OD: 16 x 20.6 mm, 0.8 mm thick ; replaces OEM HD 3504-38C, 6700, and 6700B; gross weight: 1 g
OEM Style Military Gas Caps
Army olive painted reproduction gas caps as used on HD Military motorcycles. With correct details, including Eaton logo stamp on the inside.
Oil Line Kits for 45”/750cc WLC Models
Reproductions of the original canvas braided rubber oil lines with pre-installed fittings as used on WLC Canadian Army models. However, they fit all 45”/750cc Flatheads for custom applications.
Tank Mounting 45”/750 cc Flathead
Nuts and bolts to fasten gas and oil tank combination on 45”/750 cc Flatheads.
Tank Buffers 45”/750cc 1937-1973
In the past, these tank buffers were made of mildly-pressed horsehair which was painted black. Later they were replaced by more durable foam rubber. They were placed between the two tank halves to keep them from chafing each other. An adhesive surface on one side prevents slipping.
Military Tank Top Filler Strips 45"/750cc 1937-1946
Precise reproduction of the olive drab tank top filler strips used on military 45“/750cc models 1937-1945, to cover the gap found in between the tanks where they bolt to the frame. Painted black they can also be used for civilian 45"/750cc models throughout the years 1937-1946.
Tank Top Filler Strips 45"/750cc 1937-1946
Chrome-plated version of the tank top filler strips used on military and civilian 45“/750cc models throughout the years 1937-1946. They were used to cover the gap found in between the tanks where they bolt to the frame.
See also:
PanAm Oil Slide
Oil change without a mess! This rubberized aluminum alloy sheet allows you to form an individual funnel or trough to direct your waste oil from the hard-to-reach oil tank drain hole or oil filter plate to any suitable container. Of course, you can also use it to fill fresh oil into your tank. Tapered at one end so it can be shaped to reach tight spots. You can reshape and use it a thousand times and on different bikes. With suspension eye so you can hang it up for drip-off. Easy to clean.
Tankdoc Gas Tank Restoration Kits
Rust inside the motorcycle tank can significantly affect the function and safety of your Harley. Even small rust particles can break off and enter the fuel system, clogging the carburetor, fuel injection system, and fuel lines....
KRM Tank Cleaner and Sealer
Formerly Kreem, now KRM: Recommended for older gas tanks which are rusty or dirty on the inside. Tank prep A & B remove corrosion and prepare the surface for the KRM Sealer. The Sealer cures hairline cracks (not holes!) and its tough white skin permanently seals the tank and permanently protects it against rust. One bottle contains enough sealer for tanks up to 13 liters capacity.
