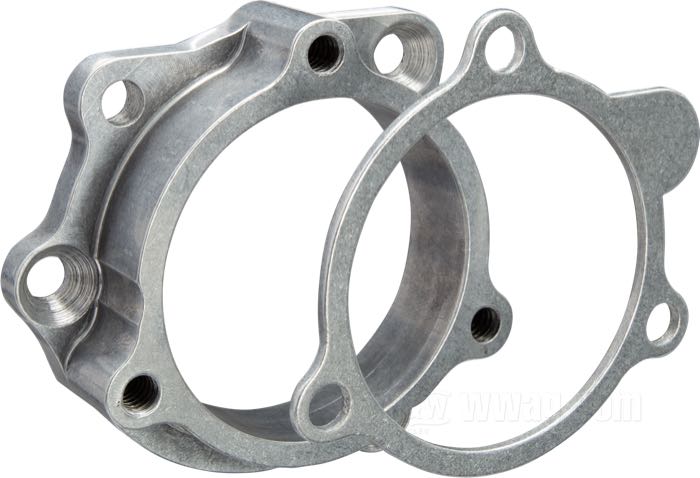

Bates Adapter for Oval Air Cleaners on CV Carburetors
- Adapter by Bates
- for Keihin CV carburetors 1988→
- for air cleaners with Tillotson, Bendix and Keihin (exc. CV) bolt pattern
- aluminum, tumble polished
- length: 25 mm
- for CV carburetors
- thread: 1/4”-20
- Germany
- gross weight: 130 g
This adapter allows for the installation of OEM or aftermarket air cleaners with recessed backing plate on Keihin CV carburetors. At least that’s what it is intended for, but of course, you can mount any air cleaner, carb cover or air horn with a Tillotson, Bendix or Keihin bolt pattern. It is also useful with large or low mounted gas tanks, because it positions the air cleaner further to the right by 21 mm.
To mount the adapter to the carb you require three 1/4”-20 x 3/8” countersunk allen screws. To mount the air cleaner to the adapter you can use use three regular 1/4”-20 x 1/2” allen screws.
See also:
Keihin CV Carburetor 49 State
Bendix Style Oval Air Cleaner
