Bates Spotlight Kits for FLH
Price and stock:
Item №
01-437
Price incl. VAT
442.80 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 70.70 € German VAT.

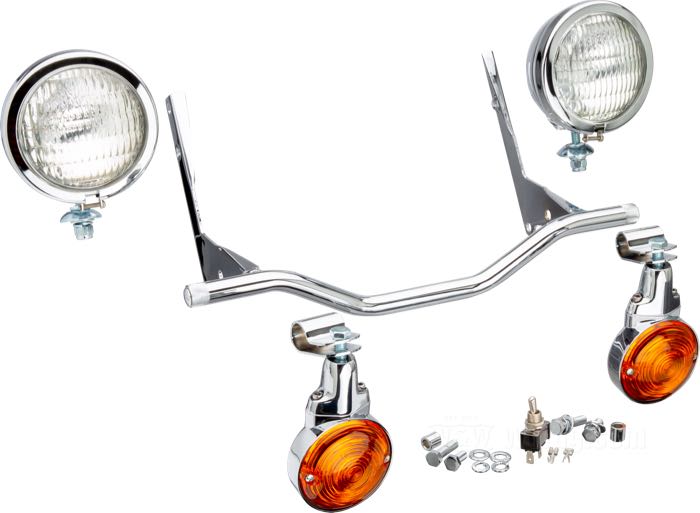

- Spotlight bar kit complete by Bates
- fits 4-speed FL models 1968-1984
- steel, chrome-plated
- gross weight: 4.2 kg
Complete late style spotlight kits with mounting bar and turn signals. The best choice to add the classic E-Glide look. Each kit includes all of the required wiring and connectors and a toggle switch.
Spare parts:

85-909
Spacer by Gardner-Westcott; steel, chrome-plated; length: 1/2 ” (13 mm); inner Ø: 5/16 ”; outer Ø: 1/2 ”; gross weight: 10 g

88-046
Washer »Standard«; steel, chrome-plated; nominal ID: 5/16 ”; gross weight: 2 g

88-086
Lock washer »Standard«; steel, chrome-plated; nominal ID: 5/16 ”; gross weight: 1 g

14-087
Toggle switch; for Spotlight; brass / plastic / steel; 6 or 12 V; 35 A; replaces OEM HD 67844-70, and 67858-89; gross weight: 30 g

89-222
Screw; steel, chrome-plated; hex; thread: 5/16”-24; length: 3/4 ” (19 mm); wrench size: 1/2 ”; gross weight: 10 g

89-225
Screw; steel, chrome-plated; hex; thread: 5/16”-24; length: 1-1/4 ” (32 mm); wrench size: 1/2 ”; gross weight: 20 g

14-427
Terminal socket; for custom application; non-insulated; brass; width: 6.3 mm; for wires: ~ 0.75 - 1.5 mm² (AWG 18-16); gross weight: 10 g

10-177
Spotlight bracket; fits FL 1968-1984; steel, chrome-plated; replaces OEM HD 68780-68; gross weight: 830 g

10-181
Spotlight housing »Sphere Style«; fits all models 1962→; steel, chrome-plated; length: 56 mm; Ø 122 mm; for headlight insert (Ø): 4-1/2”; without insert; replaces OEM HD 68652-64B; gross weight: 400 g

10-184
Spotlight insert; Sealed Beam; steel / glass, fluted; Ø 4-1/2”; bulb type: not replaceable; 12 V; 30 W; without position light function; replaces OEM HD 68674-69; gross weight: 220 g

10-231
Turn signal; fits FL 1963-1985, FX and Sportster →1972, FXRT 1983-1985; metal, amber, chrome-plated; bulb type: P21W; thread: #10-24; 12 V; socket: BA15s; replaces OEM HD 68557-70A, and 68552-70A; E11 approved; gross weight: 300 g

10-237
Mounting kit; for Turn signals; fits FL; steel, chrome-plated; replaces OEM HD 68519-68; gross weight: 210 g
