Vacuum Operated Fuel Valves

Vacuum Operated Fuel Valves

Select variant:
36-177
fits Touring 1994-2001, Dyna 1995-2001, Softail 1995-2001, FXR 1999-2000; outlet position: 90° (→ left); replaces OEM HD 61338-94
36-182
fits Sportster 1995-2001; outlet position: straight; replaces OEM HD 62169-95
Price and stock:
Item №
36-177
Price incl. VAT
199.09 €
Available
25
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 31.79 € German VAT.
kit
Save to wish list

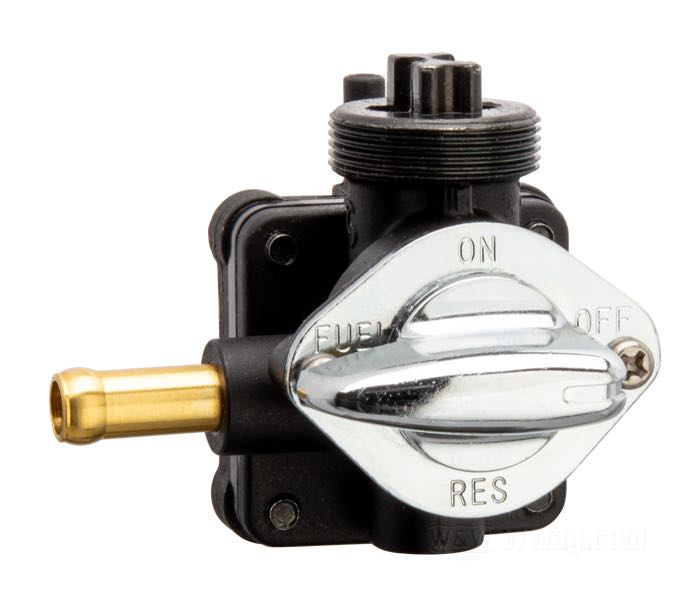

This stock replacement fuel valve shuts off automatically when the engine is off. On starting, the vacuum created by the engine activates a diaphragm which opens the valve again. For safety reasons there is an additional conventional lever, too. The installation of this valve requires a vacuum hose fitting on your manifold or carburetor (as used on Harley models from 1981 up) which has to be installed if not present. All those who once found their bike sitting in a big puddle of fuel (no smoking please) just because of a grain of sand in the float needle valve will appreciate the additional safety of this device. With a 22 mm adapter nut the petcock will fit all OEM  tanks 1975-up and all aftermarket tanks that feature the same type of outlet.

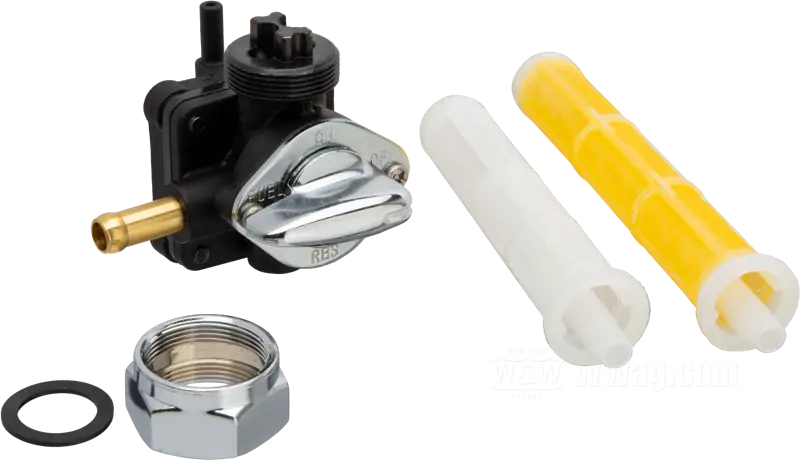

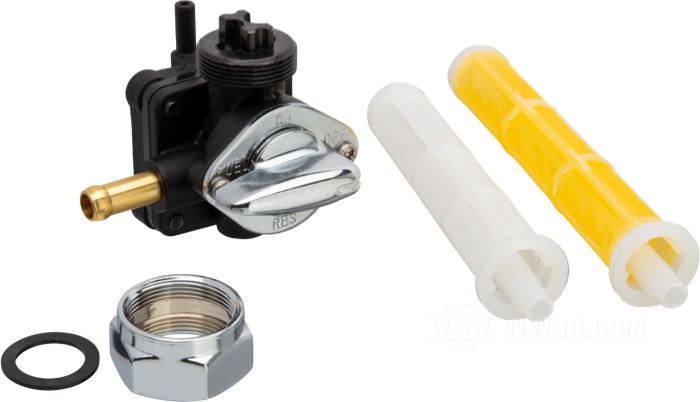

  • Fuel valve »Vacuum Operated«
  • fits Touring 1994-2001, Dyna 1995-2001, Softail 1995-2001, FXR 1999-2000
  • cast iron / plastic, with reserve
  • outlet position: 90° (→ left)
  • required fuel line: 1/4”
  • thread: M22 x 1
  • with fuel filter
  • replaces Harley-Davidson part number HD 61338-94
  • USA
  • gross weight: 130 g
