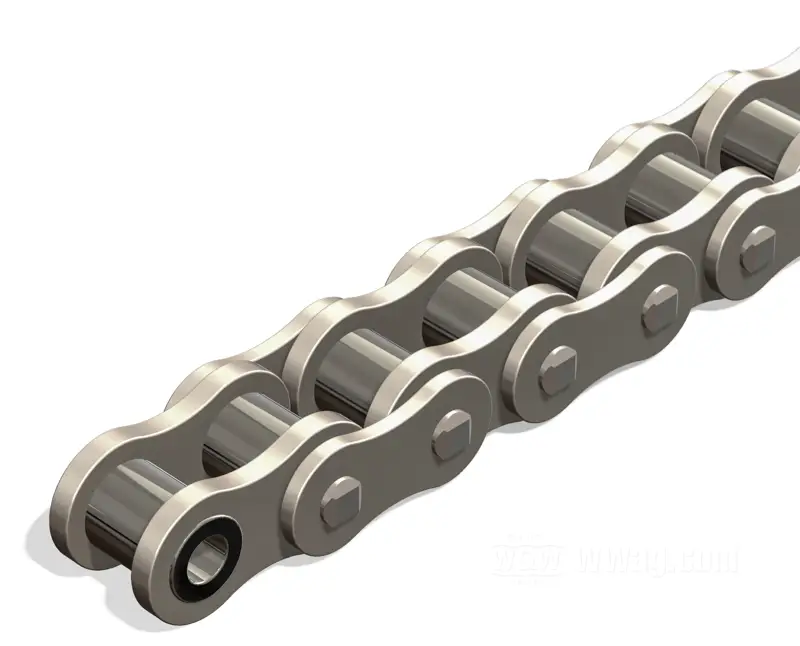

Tsubaki Delta 530 Secondary Chain
>
76-852
The Delta QRN 530 is a non-sealed high quality roller chain. The bushings between roller and rivet are made from sintered metal and oil impregnated (HSL), which in turn results in longer service spans. The side plates are nickel-plated for corrosion protection and good looks.
- steel, nickel-plated, HSL
- width: 23 mm
- number of links: 104
- pitch: 530 (5/8" x 3/8” x 10.16)
- tensile strength: 31.4 kN
- max. permitted horsepower: 85 hp
- with clip type master link
- gross weight: 1.93 kg
Tsubaki Chains
All of our Tsubaki chains have quad-staked rivets for higher load capacity and come pre-stretched to decrease initial elongation. Advanced engineering and high production standards assure superior chain performance and value.
