Transmission Pulleys
Select subgroup:
for 4-Speed Big Twin
for 5-Speed Big Twin 1985-early 1994
for 5-Speed Big Twin Late 1994→
for 5-Speed Sportster
Price and stock:
Item №
76-630
Price incl. VAT
259.36 €
Available
13
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 41.41 € German VAT.

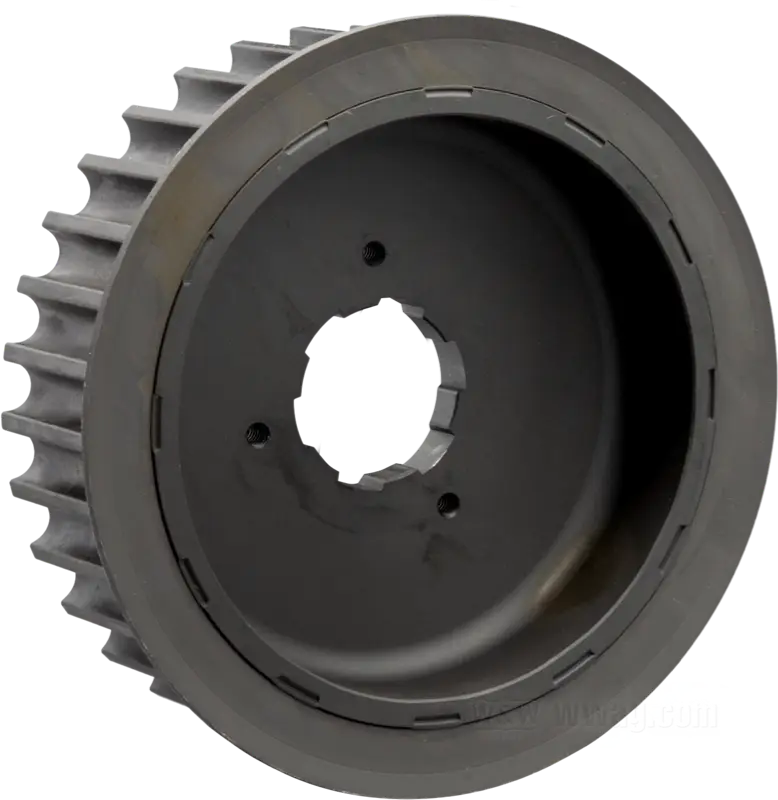

- Transmission pulley
- fits 4-speed Big Twin
- steel
- number of teeth: 33
- replaces Harley-Davidson part number HD 40212-80D
- gross weight: 2.6 kg
Transmission pulleys are the transmission sprocket's counterpart when the final drive to the rear wheel is via toothed belt. Belt drives are low-maintenance and run quietly. Drive belts have no joints like chains, so the pulleys have a minimum diameter, starting from 27 teeth. The complex manufacturing process limits the range to a small selection of sizes. Therefore, the drive ratio is not as variable as with a chain drive.
Accessories:
77-200
Nut; for Transmission sprocket / Pulley; fits Sportster 1991-1992, Big Twin 1936-1992; steel; 1/4” thick; thread: 1-1/2”-24 LH; replaces OEM HD 35211-36; gross weight: 50 g
77-212
Nut by Colony; for Transmission sprocket / Pulley; fits Sportster 1991-1992, Big Twin 1936-1992; steel, parkerized; 1/4” thick; thread: 1-1/2”-24 LH; with tab washer; replaces OEM HD 35211-36; USA; gross weight: 10 g
