The Cyclery Hot Air Connections for Schebler HX Carburetors
The Cyclery Hot Air Connections for Schebler HX Carburetors
Select variant:

bare


nickel-plated
Price and stock:
Item №
65-979
Price incl. VAT
139.71 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 22.31 € German VAT.

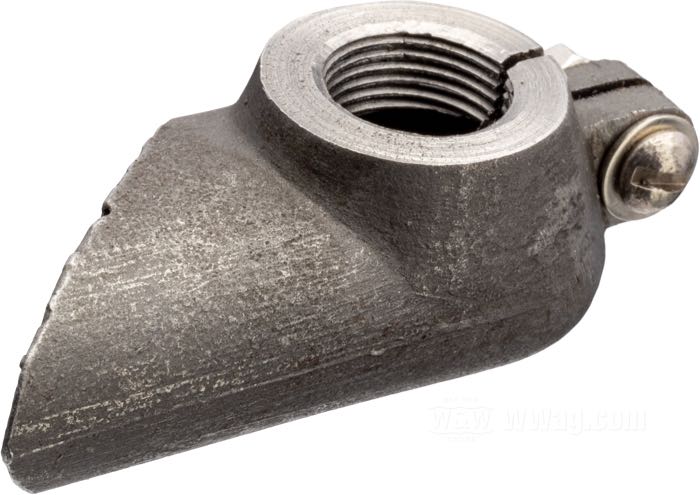

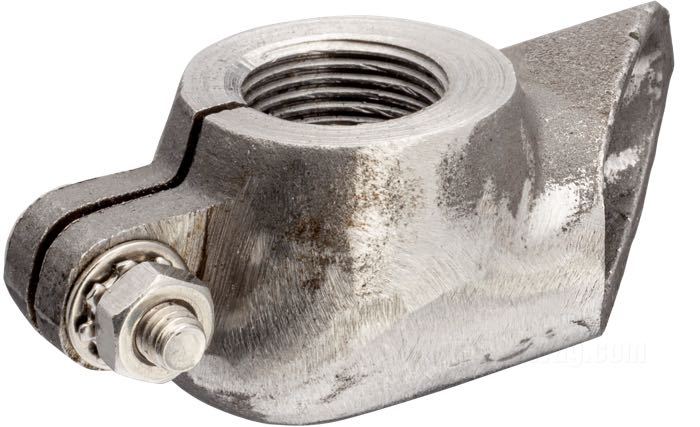

- Hot air connection by The Cyclery
- for Float bowl
- for Schebler HX carburetors
- fits 74" 1921-1923, 1924-1927 Twins
- steel, bare
- thread: 9/16”-24
- replaces Harley-Davidson part number HD 1210-21
- Poland
- gross weight: 61 g
This device is meant to prevent the carburetor from icing up in cold temperatures. It is mounted underneath the float bowl, directly on the nozzle channel of Schebler HX carburetors. Can be fixed in the correct position with a clamping screw. The opening of this hot air connection points towards the rear cylinder, where it picks up the heat and warms up the fuel in the float bowl.
