Shop
>
Handlebars
>
Risers
>
Risers OEM Replacement
>
Risers 1974→

Risers 1974→

Select variant:
20-183
fits FXSTB 1998-2010; cast aluminum; thread: 5/16”-18 / 1/2”-13; measures according to drawing: H-mounting height=150 mm; replaces OEM HD 56223-98, 56018-98, and 56019-98
20-185
for 1/2” hex head bolts and 5/16” bolts; fits FLH 1980-1984; zinc die-cast; measures according to drawing: H-mounting height=43 mm; length l for bolt shaft: 21 mm; replaces OEM HD 55940-79A, 55941-79A, 55940-82, and 55941-82
 20-186
for 1/2” hex head bolts; fits FX and Sportster 1974-1983, FXR 1980→, Dyna 1997→; cast aluminum; thread: 5/16”-18; measures according to drawing: H-mounting height=50 mm; length l for bolt shaft: 30 mm; replaces OEM HD 56103-74B, 56106-74B, 56098-80, 56099-80, 56116-77A, 56116-82, 56117-77A, and 56117-82
 20-180
fits FXS/FXB 1977-1981, FXST 1987→; cast aluminum; thread: 5/16”-18 / 1/2”-13; measures according to drawing: H-mounting height=100 mm, P-pullback = 30 mm; replaces OEM HD 56122-77, 56124-77, 56126-80, and 56127-80
 20-182
fits FXWG 1980-1986; cast aluminum; thread: 5/16”-18 / 1/2”-13; measures according to drawing: H-mounting height=107 mm; replaces OEM HD 56142-80
Price and stock:
Item №
20-183
Price incl. VAT
81.75 €
Available
13
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 13.05 € German VAT.
set
Save to wish list
Description
Facts

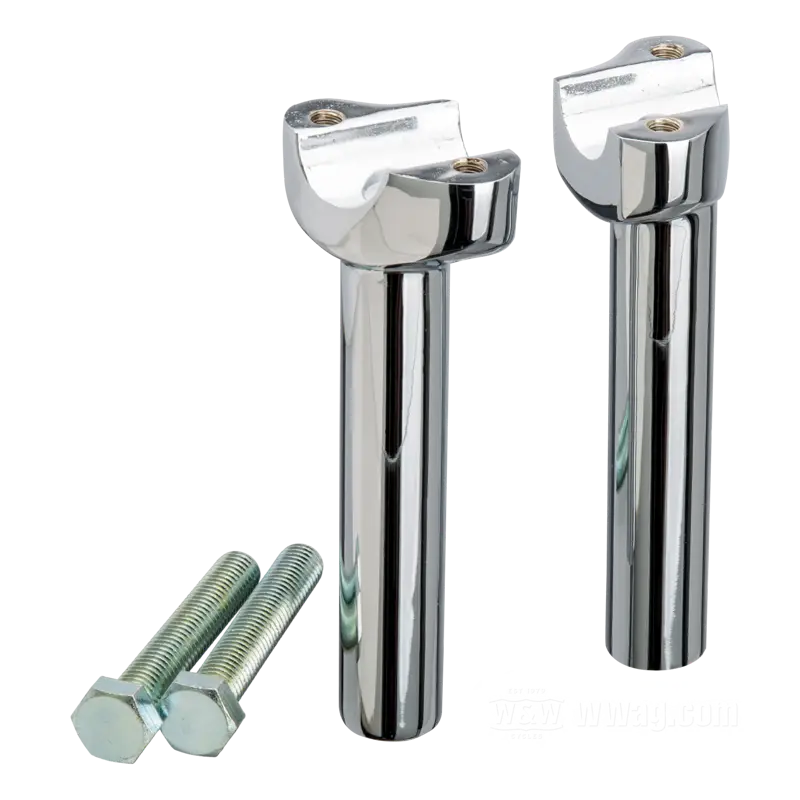

In 1974, together with the one-piece smooth handlebars without internal throttle cables, a design icon of Harley-Davidson saw the light of day: the risers with offset clamping screws, further apart at the front than at the rear. With the most different heights, straight or bent backwards, they are found on various models.

  • Risers
  • fits FXSTB 1998-2010
  • riser distance 3-1/2” (= 89 mm)
  • cast aluminum, chrome-plated
  • thread: 5/16”-18 / 1/2”-13
  • measures according to drawing: H-mounting height=150 mm
  • replaces Harley-Davidson part number HD 56223-98, 56018-98, and 56019-98
  • gross weight: 1.3 kg
