Risers 1974→
Select variant:

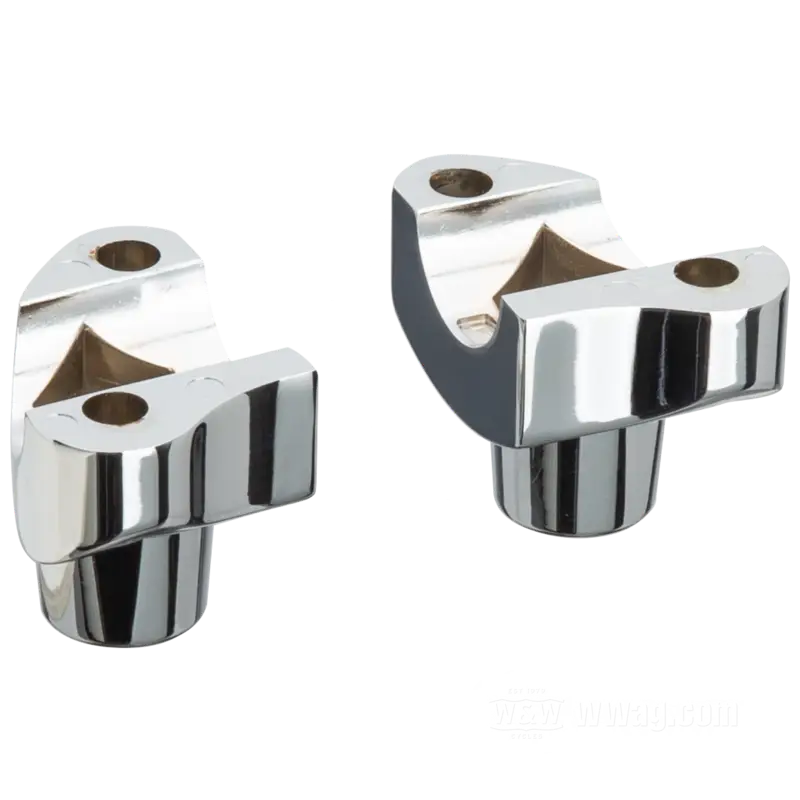

for 1/2” hex head bolts and 5/16” bolts; fits FLH 1980-1984; zinc die-cast; measures according to drawing: H-mounting height=43 mm; length ℓ for riser bolt shaft: 21 mm; replaces OEM HD 55940-79A, 55941-79A, 55940-82, and 55941-82

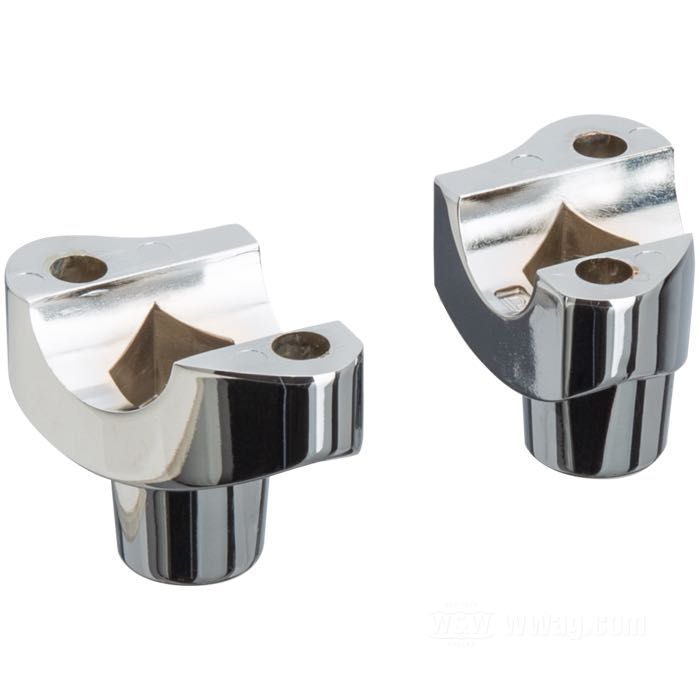

for 1/2” hex head bolts; fits FX and Sportster 1974-1983, FXR 1980→, Dyna 1997→; cast aluminum; thread: 5/16”-18; measures according to drawing: H-mounting height=50 mm; length ℓ for riser bolt shaft: 30 mm; replaces OEM HD 56103-74B, 56106-74B, 56098-80, 56099-80, 56116-77A, 56116-82, 56117-77A, and 56117-82
fits FXS/FXB 1977-1981, FXST 1987→; cast aluminum; thread: 5/16”-18 / 1/2”-13; measures according to drawing: H-mounting height=100 mm, P-pullback = 30 mm; replaces OEM HD 56122-77, 56124-77, 56126-80, and 56127-80
fits FXWG 1980-1986; cast aluminum; thread: 5/16”-18 / 1/2”-13; measures according to drawing: H-mounting height=107 mm; replaces OEM HD 56142-80
fits FXSTB 1998-2010; cast aluminum; thread: 5/16”-18 / 1/2”-13; measures according to drawing: H-mounting height=150 mm; replaces OEM HD 56223-98, 56018-98, and 56019-98
Price and stock:
Item №
20-185
Price incl. VAT
40.48 €
Available
18
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 6.46 € German VAT.
- Risers
- for 1/2” hex head bolts and 5/16” bolts
- fits FLH 1980-1984

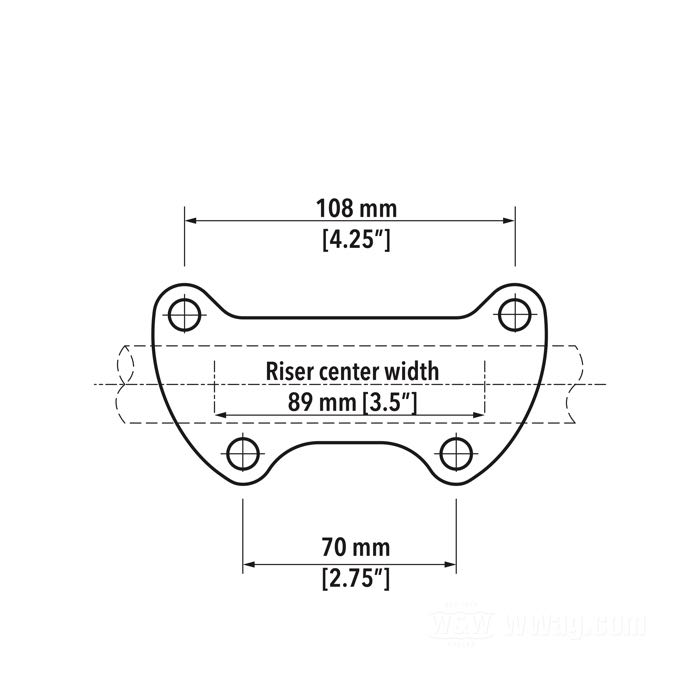

- riser distance 3-1/2” (= 89 mm)
- zinc die-cast, chrome-plated

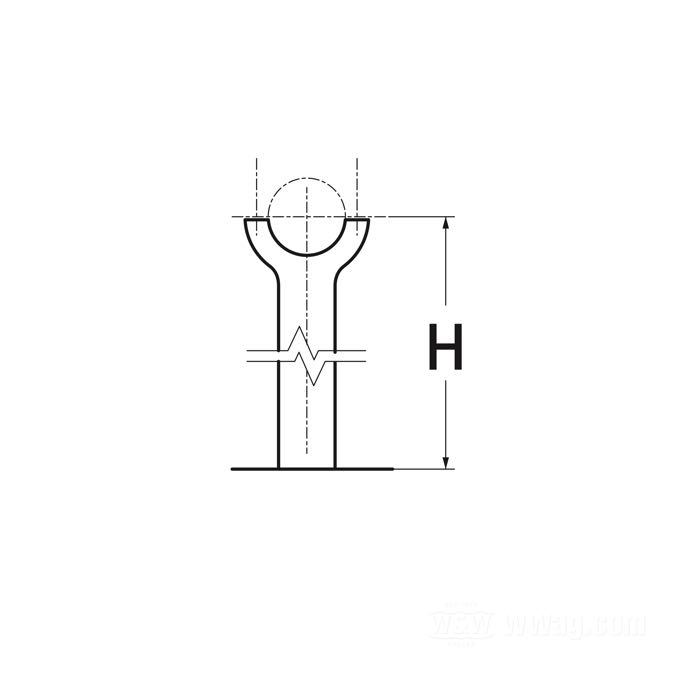

- measures according to drawing: H-mounting height=43 mm

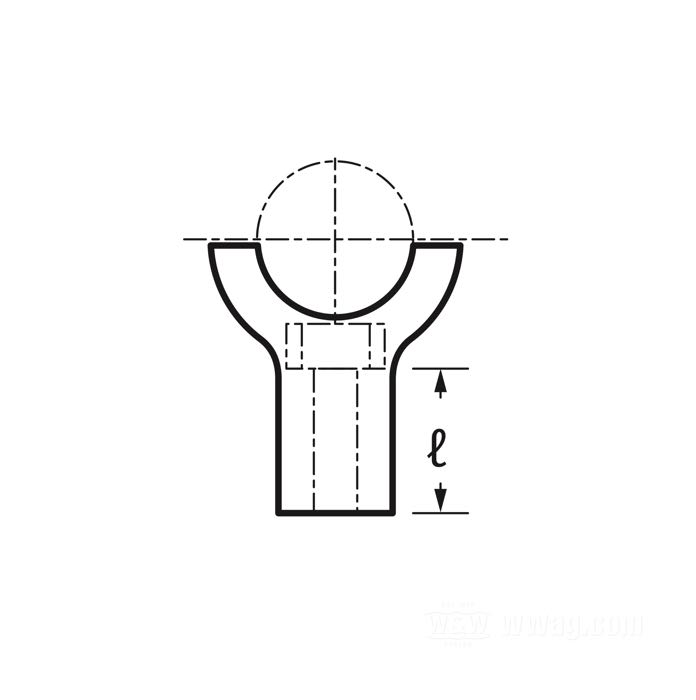

- length ℓ for riser bolt shaft: 21 mm
- replaces Harley-Davidson part number HD 55940-79A, 55941-79A, 55940-82, and 55941-82
- gross weight: 300 g
In 1974, together with the one-piece smooth handlebars without internal throttle cables, a design icon of Harley-Davidson saw the light of day: the risers with offset clamping screws, further apart at the front than at the rear. With the most different heights, straight or bent backwards, they are found on various models.
Accessories:
86-885
Screw; steel, chrome-plated; socket head; thread: 5/16”-18; length: 1 ” (25 mm); wrench size: 1/4 ”; gross weight: 10 g
Screw Kits for Handlebar Clamp 1974-1981

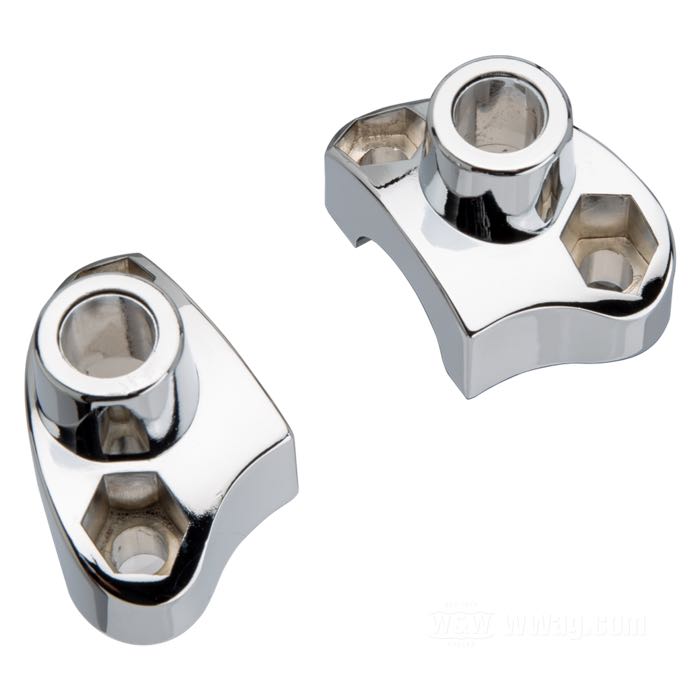

Nostalgic Handlebar Clamps for 1974→ Risers
These beautiful handlebar clamps were styled to resemble the handlebar riser link used on 1949 thru 1959 Hydra Glide models. They add a nostalgic touch to your late model motorcycle.
Handlebar clamps 1974→
Selection of clamps in various designs and finishes.
